Key Takeaways & Executive Findings
- •• FSAM effectively refines grains and increases high-angle grain boundaries in 2195 Al-Li alloys, regardless of initial heat-treatment state (T3 or T8). • The heat-treatment state has minimal influence on the final microstructure after FSAM, as processing temperatures exceed the solid solution temperature. • Tensile strengths of the nugget zone reach up to 478 MPa (T3) and 481 MPa (T8) in lap experiments, demonstrating significant mechanical property improvements. • The study provides a foundation for optimizing FSAM parameters to achieve tailored microstructures and enhanced performance in aerospace-grade Al-Li alloys.
Abstract

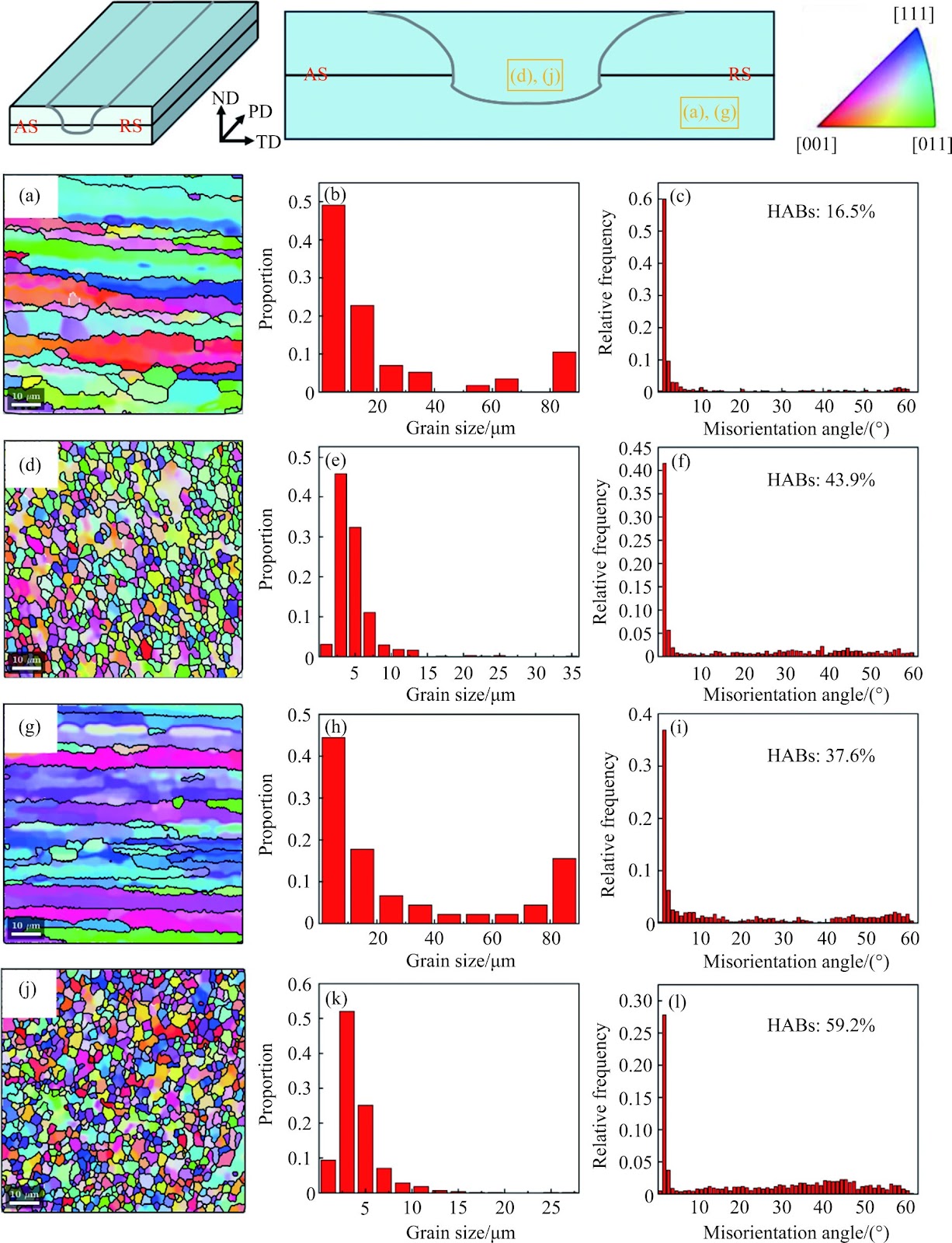

Friction stir additive manufacturing (FSAM) is an innovative additive manufacturing (AM) method. The various heat treatment conditions of aluminum-lithium alloys using this method have not been widely discussed. In this study, the microstructure evolution and mechanical properties of FSAM 2195 aluminum-lithium alloy in different heat treatment conditions (T3 and T8) were investigated. The results demonstrated that the heat treatment state of 2195 Al-Li alloys was minimally influenced by FSAM as the FSAM temperature exceeded the solid solution temperature. After conducting a single-pass FSAM experiment, a notable grain refinement was observed in the nugget zone (NZ) region compared to the base material (BM). The average grain size of the 2195-T3 alloy decreased from 6.1 to 2.9 μm, while the proportion of high-angle grain boundaries increased from 16.5% to 43.9%. Similarly, the average grain size of the 2195-T8 alloy decreased from 8.9 to 2.8 μm, with an increase in high-angle grain boundary from 37.6% to 59.2%. The tensile strength of the 2195-T3 Al-Li alloy reached 466 and 478 MPa in the NZ of single-pass and lap experiments, respectively. In comparison, the tensile strength of the 2195-T8 Al-Li alloy in the NZ could reach 452 and 481 MPa in single-pass and lap experiments, respectively. These results demonstrate the significant improvements in microstructure and mechanical properties were achieved through the FSAM process.
1. Introduction
Aluminum-lithium alloys are extensively utilized in the aerospace industry as a fundamental structural material, recognized for their remarkable strength, outstanding low-temperature plasticity, and superior corrosion resistance [1−9]. The alloy is currently being effectively employed in a variety of critical aerospace applications. As a standard heat-treatable strengthening alloy, the 2195 Al-Li alloy typically undergoes the T8 heat treatment process. This process enhances the component's performance by subjecting it to a specific deformation following solid solution treatment, and subsequently completing the aging process [10].
DAI et al [10] conducted a low-temperature pre-rolling T8 treatment on Ag-free 2195 Al-Li alloy. Their findings revealed that during the aging process, dislocation rearrangement induced by dynamic recovery significantly accelerates the nucleation kinetics. This, in turn, activates additional diffusion pathways and enhances the interaction within the T1 substructure. Consequently, T8 treatments can readily produce an extra strengthening effect on the substructure that is largely absent in T6 treatments. XIE et al [11] and their colleagues conducted a comprehensive study on the aging process of 2195 Al-Li alloy, focusing on the effects of pre-deformation on its mechanical properties and precipitation behavior. The research findings indicate that pre-deformation plays a pivotal role in facilitating the precipitation of the AlCuLi phase, acting as nucleation sites for this phase through the process of deformation. Moreover, an increase in temperature was observed to enhance the diffusion rate of Cu atoms, thereby significantly accelerating the precipitation of the Al2Cu phase. Furthermore, the integration of two-stage aging and pre-deformation has demonstrated a dual advantage for the 2195 Al-Li alloy, enhancing both its strength and elongation concurrently. TAO et al [12] conducted an investigation into the precipitation behavior of Al-4Cu-1Li alloys at temperatures ranging from 100 to 175 ℃. The results indicated that as the aging temperature increased, the microstructure of the material evolved from GP zone and θ' phase to T1 and θ' phase. This transition led to a gra
Loading authentic research manuscript (Pages 1–5)...
GAO Yong-hui, JIANG Tao, DAI Guo-qing, LI Jun, GUO Yan-hua, SUN Zhong-gang, LIU Chun-hui, ZHAN Li-hua (2025). Microstructure evolution and mechanical properties of 2195 Al-Li alloy with different heat-treatment states via friction stir additive manufacturing. Journal of Central South University. https://doi.org/10.1007/s11771-025-6084-2
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is friction stir additive manufacturing (FSAM)?
FSAM is an innovative additive manufacturing method that uses friction stir welding principles to build components layer by layer, offering advantages such as solid-state processing, fine microstructures, and improved mechanical properties.
How does FSAM affect the microstructure of 2195 Al-Li alloy?
FSAM significantly refines the grain structure in the nugget zone, reducing average grain size and increasing the proportion of high-angle grain boundaries, which enhances mechanical properties.
What are the tensile strengths achieved in this study?
In the nugget zone, the 2195-T3 alloy achieved tensile strengths of 466 MPa (single-pass) and 478 MPa (lap), while the 2195-T8 alloy achieved 452 MPa (single-pass) and 481 MPa (lap).
Does the initial heat-treatment state influence the FSAM outcome?
The study found that the heat-treatment state (T3 vs T8) has minimal influence on the final microstructure after FSAM, as the processing temperature exceeds the solid solution temperature, leading to similar refined microstructures.
What is the significance of this research for aerospace applications?
This research demonstrates that FSAM can produce 2195 Al-Li alloy components with refined microstructures and enhanced mechanical properties, which is crucial for aerospace structural applications where weight reduction and high strength are critical.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
