Key Takeaways & Executive Findings
- •• Ce micro-alloying significantly enhances the corrosion resistance of as-cast CoCrNi MEAs in 3.5wt.% NaCl solution, with optimal performance at 0.02at.% Ce. • The addition of Ce reduces the passivation current density to a minimum of 26.383 μA·cm-2 and increases the breakdown potential to 0.471 VSCE, indicating superior protective film stability. • The improvement is attributed to Ce modifying inclusions and forming a non-conductive precipitated phase, which enhances the passivation film's protective properties. • This cost-effective micro-alloying strategy offers a promising route for improving the durability of CoCrNi MEAs in corrosive environments, with potential applications in aerospace, automotive, and marine industries.
Abstract

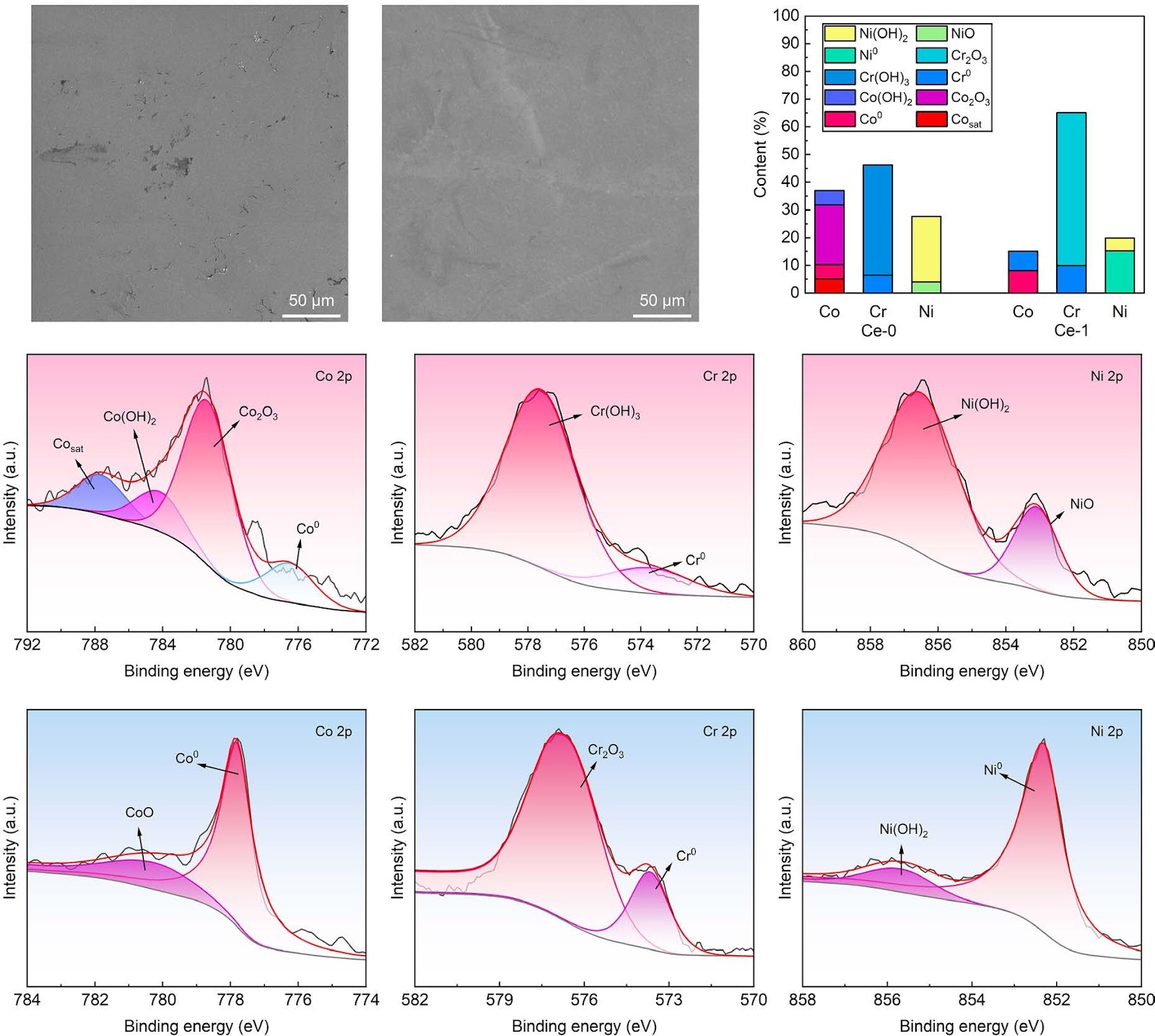

Enhancing corrosion resistance in cast alloys using straightforward and cost-effective micro-alloying techniques has emerged as a key area of investigation in materials science. The challenge lies in applying this technique to further enhance the already excellent properties of CoCrNi medium-entropy alloys (MEAs) for casting applications. A micro-alloying approach was proposed to improve the corrosion resistance of as-cast CoCrNi MEAs by incorporating cerium (Ce). The corrosion resistance of CoCrNi MEAs firstly increases and then decreases as the Ce content increases in a 3.5wt.% NaCl solution. At a Ce content of 0.02at.%, the passivation current density reaches its minimum value (26.383 μA·cm-2), while the breakdown potential reaches its maximum (0.471 VSCE), imparting exceptional corrosion resistance. The results indicate that the enhanced corrosion resistance is primary due to Ce micro-alloying, which affects inclusions by forming a non-conductive precipitated phase and modifying the passivation film. Ce micro-alloying presents a promising strategy for enhancing the corrosion resistance of as-cast CoCrNi MEAs.
1. Introduction
Medium entropy alloys (MEAs), especially those based on CoCrNi, have gained significant attention in materials science due to their unique combination of properties [1-6]. CoCrNi MEAs, characterized by a nearly equiatomic composition of cobalt (Co), chromium (Cr), and nickel (Ni), offer an advantageous balance of mechanical strength, ductility, and resistance to high-temperature oxidation and corrosion, setting them apart from conventional alloys [7-13]. Moreover, corrosion resistance plays a critical role in determining the durability and reliability of cast alloys in various industrial settings, including aerospace, automotive, and marine environments [14]. Enhanced corrosion resistance can extend service life, reduce maintenance costs, and elevate safety standards, making it a focal point of ongoing research. Consequently, the development of innovative alloying strategies remains essential to further improve the corrosion resistance of these advanced materials.
Micro-alloying, which involves the addition of trace amounts of specific elements (<0.1%), introduces an innovative strategy for enhancing the properties of alloys. This technique can profoundly affect the microstructure and phase constitution of the base alloy, ultimately leading to superior performance attributes. Whether incorporating rare-earth elements (REs) or common metallic elements, such as aluminum (Al), iron (Fe), Cr, or Ni, the objective is to optimally dope MEAs and high-entropy alloys (HEAs) [15-19]. Presently, additional research is imperative to comprehensively understand the utilization of REs, specifically cerium (Ce)-doped MEAs/HEAs. Improving the corrosion resistance of MEAs/HEAs is a paramount objective, and the potential for enhancing other properties through the incorporation of REs merits further exploration. Furthermore, if the addition of REs proves equally effective in bolstering other properties, their cost implications must also be taken into account. The incorporation of REs is recognized for refining grain structures, augmenting mechanical properties, and substantially enhancing corrosion resistance. Notably, Ce has demonstrated remarkable effects on the corrosion resistance of metallic alloys [20-23]. It is well-documented that Ce promotes the formation of fine, equiaxed grains during solidification, which can enhance the mechanical properties and uniformity of the alloy. Moreover, Ce can form stable oxides that serve as protective barriers on the alloy surface, thereby augmenting its resistance to corrosion. For instance, Ce has been successfully employed to enhance the corrosion resistance of aluminum, magnesium, and steel alloys by forming a stable and adherent oxide layer that safeguards the underlying metal from corrosive environments [24, 25]. Research on the specific impacts of Ce on CoCrNi MEAs is still in its nascent stages. Preliminary studies have indicated substantial potential for enhancing mechanical strength, ductility, and resistance to high-temperature oxidation. The present research endeavors to fill this gap by systematically investigating the effect of Ce micro-alloying on the corrosion behavior of as-cast CoCrNi MEAs in a 3.5wt.% NaCl solution.
Loading authentic research manuscript (Pages 1–5)...
Bo Chen, Chang Ma, Wei-dong Xuan, Zhan-yong Gao, Guang-rui Zhang, Fei Lu, Yuan Hou (2026). Micro-alloying for improving corrosion resistance of as-cast alloy CoCrNi in 3.5wt.% NaCl solution by Ce addition. SinoTechIntel Verified Research. https://doi.org/10.1007/s41230-026-4218-2
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the optimal cerium content for enhancing corrosion resistance in CoCrNi medium-entropy alloys?
The optimal cerium content is 0.02 at.%, which results in the lowest passivation current density (26.383 μA·cm-2) and the highest breakdown potential (0.471 VSCE) in a 3.5wt.% NaCl solution.
How does cerium micro-alloying improve the corrosion resistance of CoCrNi alloys?
Cerium micro-alloying improves corrosion resistance by modifying inclusions and forming a non-conductive precipitated phase, which enhances the stability and protective nature of the passivation film on the alloy surface.
What are the potential applications of CoCrNi alloys with enhanced corrosion resistance?
These alloys can be used in aerospace, automotive, and marine environments where durability and reliability are critical, offering extended service life and reduced maintenance costs.
Is the micro-alloying technique cost-effective?
Yes, micro-alloying with trace amounts of cerium is a straightforward and cost-effective technique, making it a promising strategy for industrial applications.
What is the effect of cerium content on corrosion resistance?
The corrosion resistance of CoCrNi MEAs first increases and then decreases with increasing cerium content, with the best performance at 0.02 at.% Ce.
Related Technical Papers & Translations
Pull-out capacity and energy absorption of cable bolts under impact loading
This study investigates the performance of high-strength cable bolts under impact loading conditions representative of rock bursts in underground environments. Although widely used, the dynamic behaviour of these cable bolts has received limited experimental attention, and their effectiveness in seismically active zones remains a subject of ongoing debate. To address this gap, a reverse pull-out test machine integrated with a drop hammer rig was employed. Tests were conducted on 70-t SUMO bulbed and non-bulbed cable bolts with encapsulation lengths of 300 and 450 mm, subjected to an impact energy of 14.52 kJ. Results indicate that non-bulbed cables, despite showing lower initial peak loads (average 218 vs. 328 kN for bulbed cables at 300 mm encapsulation), demonstrated superior energy absorption (average 11.26 vs. 8.75 kJ) and displacement capacity (average 48.40 vs. 36.25 mm). Increasing the encapsulation length for bulbed cables led to a reduction in initial peak load but improved displacement and energy absorption. The dominant failure mechanism was debonding at the cable-grout interface, characterised by frictional sliding and cable rotation. These findings provide new insights into the energy dissipation mechanisms of cables and support the development of more resilient ground support systems for dynamically active conditions.
Effect of eutectic content on microstructure and mechanical properties of Al-Zn-Mg-Cu alloys
The 7xxx series aluminum alloys have emerged as a particularly promising class of lightweight structural materials. However, the inherent strength of these materials is primarily influenced by the content and type of alloying elements added during the manufacturing process, as well as casting defects. The present study investigated the effects of eutectics formed by solute atoms (Zn, Mg, and Cu), with equal mass ratios (Zn/Mg=2, Mg/Cu=3) but varying overall contents, on the liquid film thickness, crack propagation depth, and the mechanical properties of the Al-Zn-Mg-Cu alloy after heat treatment. The results from gravity casting indicate that the intergranular liquid film thickness increases with the increase of eutectic content. A thick intergranular liquid film in the casting can accommodate greater strain during grain contraction, thereby preventing liquid film rupture and subsequent hot tearing. Concurrently, during the solution treatment at 475 °C, the residual eutectic fraction in the Al-7Zn-3.5Mg-1.18Cu alloy diminishes from 9.1% at 10 h to 0.35% at 40 h. At 165 °C, the Al-6Zn-3.0Mg-1.0Cu alloy exhibits the optimal mechanical properties, with a peak aging tensile strength of 510 MPa and an elongation of 6.4%. The incorporation of lower concentrations of solute atoms (Zn, Mg, and Cu) serves to reduce the barrier to dislocation precipitation, thereby enhancing alloy plasticity. However, when the proportion of alloying elements exceeds the solubility limit of the α-Al matrix at specific heat treatment temperatures, coarse residual phases remain intergranular, thereby significantly impairing the mechanical properties of the alloy. This study provides a reference for the optimal addition level of the main strengthening elements in Al‑Zn‑Mg‑Cu alloys.
Achieving optimal strength-conductivity balance in cast Al-2.3Fe-Mg-Si alloys via Mg/Si ratio regulation
The Al-2.3Fe eutectic alloy is regarded as a promising substitute for Cu conductors in automotive motors owing to its excellent castability and low resistivity. However, its application is restricted by the mutually exclusive relationship between electrical conductivity and mechanical strength. The microstructure and mechanical properties of Al-2.3Fe alloy were modified through Mg/Si alloying combined with T6 heat treatment in this work, leading to the development of a high-performance cast Al-2.3Fe-Mg-Si alloy. In the Al-2.3Fe-0.40Mg-0.72Si (Mg/Si=0.56) alloy subjected to T6 treatment, an electrical conductivity of (52.5±0.6)% IACS is achieved, while the ultimate tensile strength is significantly enhanced to 309.5±5.6 MPa. The addition of Mg and Si brings about marked changes in the solidification process of the Al-2.3Fe alloy, resulting in considerable variations in both the morphology of the second phase and its phase constitution. The aging behavior of the alloy is governed by second phase and solid solubility. Through optimization of the Mg/Si ratio, the aging response can be effectively enhanced. At the ratio of Mg/Si=0.56, a balance is achieved between solid solubility and precipitation, while simultaneously minimizing the detrimental impact on electrical conductivity and reaching the best mechanical properties and electrical conductivity in peak-aged Al-2.3Fe-xMg-ySi alloy. This work providing valuable insights for developing advanced conductor materials.
