Key Takeaways & Executive Findings
- •• Adding Nb to Ti-5552 alloy reduces the α/β phase transformation temperature, decreasing α phase volume fraction and affecting superplasticity. • Ti-5552-9Nb alloy exhibits optimal tensile strength (307.2 MPa) and superplasticity (106%) at 923 K. • Superplastic deformation at 923 K is governed by β grain boundary sliding and dislocation movement. • Achieving superplasticity at lower temperatures (below 0.5Tm) can reduce energy consumption and shorten production processes.
Abstract

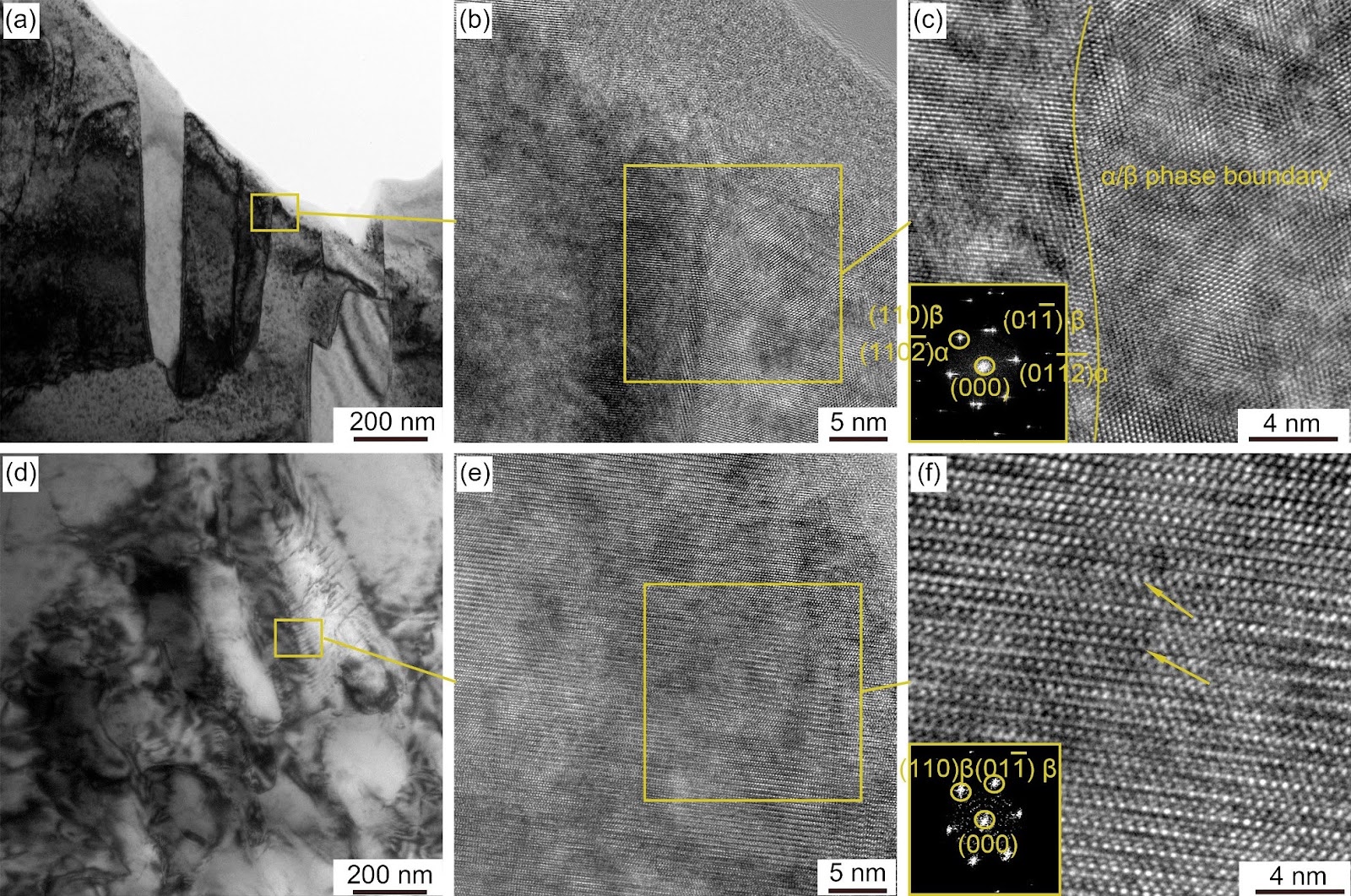

Ti-5Al-5Mo-5Cr-2Zr-xNb with different Nb (abbreviated as Ti-5552-xNb, x=3, 6, 9, 12, wt.%) contents were stretched at 923 K to study their superplastic behavior and mechanical properties below recrystallization temperature. The microstructure of as-cast Ti-5552-xNb alloy is consisted of a single β phase, and the β grain size increases slightly with the increase of Nb content. The thermal effect in the process of high temperature drawing leads to the precipitation of α phase. The addition of Nb in Ti-5552 titanium alloys reduces the α/β phase transformation temperature, which causes a decrease in the volume fraction of α phase. Reducing the α phase content reduces incompatibility, but too low a proportion of α phase will lead to premature fracture, so tensile strength and plasticity firstly increase and then decrease. The results show that Ti-5552-9Nb titanium alloy shows the best tensile strength (307.2 MPa) and superplasticity (106%). The superplastic mechanism of Ti-5552-9Nb alloy is mainly caused by relative sliding of β grain boundaries and dislocation movement.
1. Introduction
Titanium alloy is widely used in various industries because of its excellent mechanical properties and high corrosion resistance [1-3]. With the development of aerospace, the application of titanium alloy has been paid more and more attention [4-6]. Cast titanium alloy has poor mechanical properties because of its coarse β grains, thus proper thermal deformation is considered necessary [7, 8]. Because of its softening mechanism, titanium alloy shows excellent superplasticity when temperature is higher than 1,073 K [9, 10]. In contrast, the plasticity is lower at lower temperatures. If superplasticity at 923 K can be achieved, it plays an important role in reducing deformation energy consumption and shortening the production process [11, 12]. For this reason, achieving superplasticity of titanium alloys at lower temperatures has attracted widespread attention from researchers. Among the current methods, alloying is one of the most promising ways.
Nb is an important alloying element in titanium alloy, which significantly improves the mechanical properties of titanium alloy [13]. In the previous research of our group, the addition of Nb element into the titanium alloy resulted in a significant improvement in room temperature strength [14]. In addition, Nb is also a β-stable element that plays a role in regulating the ratio of α/β phase [15]. Researchers have found that the ratio of α/β phase directly affects the superplasticity at 1,023 K [9]. At present, the research on superplasticity is still conducted at higher temperatures, and the mechanism by which Nb influences superplasticity at lower temperatures still needs to be revealed.
Loading authentic research manuscript (Pages 1–5)...
Shi-chen Sun, Hong-ze Fang, Jia-qi Hao, Bao-hui Zhu, Xian-fei Ding, Rui-run Chen (2026). Influence of Nb addition on microstructure evolution and superplastic behavior of Ti-5Al-5Mo-5Cr-2Zr-xNb titanium alloy at 923 K. SinoTechIntel Verified Research. https://doi.org/10.1007/s41230-025-4248-1
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the optimal Nb content for superplasticity in Ti-5552 alloy at 923 K?
The Ti-5552-9Nb alloy (with 9 wt.% Nb) exhibits the best tensile strength (307.2 MPa) and superplasticity (106%) at 923 K.
How does Nb addition affect the α/β phase transformation temperature?
Adding Nb reduces the α/β phase transformation temperature, leading to a decrease in the volume fraction of α phase during high-temperature deformation.
What is the superplastic deformation mechanism of Ti-5552-9Nb alloy at 923 K?
The superplastic mechanism is mainly attributed to relative sliding of β grain boundaries and dislocation movement.
Why is achieving superplasticity at 923 K important?
Achieving superplasticity at lower temperatures (below 0.5Tm) reduces deformation energy consumption and shortens the production process, which is beneficial for industrial applications.
What is the effect of α phase content on mechanical properties?
Reducing α phase content reduces incompatibility, but too low a proportion leads to premature fracture, so tensile strength and plasticity first increase and then decrease with Nb content.
Related Technical Papers & Translations
Pull-out capacity and energy absorption of cable bolts under impact loading
This study investigates the performance of high-strength cable bolts under impact loading conditions representative of rock bursts in underground environments. Although widely used, the dynamic behaviour of these cable bolts has received limited experimental attention, and their effectiveness in seismically active zones remains a subject of ongoing debate. To address this gap, a reverse pull-out test machine integrated with a drop hammer rig was employed. Tests were conducted on 70-t SUMO bulbed and non-bulbed cable bolts with encapsulation lengths of 300 and 450 mm, subjected to an impact energy of 14.52 kJ. Results indicate that non-bulbed cables, despite showing lower initial peak loads (average 218 vs. 328 kN for bulbed cables at 300 mm encapsulation), demonstrated superior energy absorption (average 11.26 vs. 8.75 kJ) and displacement capacity (average 48.40 vs. 36.25 mm). Increasing the encapsulation length for bulbed cables led to a reduction in initial peak load but improved displacement and energy absorption. The dominant failure mechanism was debonding at the cable-grout interface, characterised by frictional sliding and cable rotation. These findings provide new insights into the energy dissipation mechanisms of cables and support the development of more resilient ground support systems for dynamically active conditions.
Effect of eutectic content on microstructure and mechanical properties of Al-Zn-Mg-Cu alloys
The 7xxx series aluminum alloys have emerged as a particularly promising class of lightweight structural materials. However, the inherent strength of these materials is primarily influenced by the content and type of alloying elements added during the manufacturing process, as well as casting defects. The present study investigated the effects of eutectics formed by solute atoms (Zn, Mg, and Cu), with equal mass ratios (Zn/Mg=2, Mg/Cu=3) but varying overall contents, on the liquid film thickness, crack propagation depth, and the mechanical properties of the Al-Zn-Mg-Cu alloy after heat treatment. The results from gravity casting indicate that the intergranular liquid film thickness increases with the increase of eutectic content. A thick intergranular liquid film in the casting can accommodate greater strain during grain contraction, thereby preventing liquid film rupture and subsequent hot tearing. Concurrently, during the solution treatment at 475 °C, the residual eutectic fraction in the Al-7Zn-3.5Mg-1.18Cu alloy diminishes from 9.1% at 10 h to 0.35% at 40 h. At 165 °C, the Al-6Zn-3.0Mg-1.0Cu alloy exhibits the optimal mechanical properties, with a peak aging tensile strength of 510 MPa and an elongation of 6.4%. The incorporation of lower concentrations of solute atoms (Zn, Mg, and Cu) serves to reduce the barrier to dislocation precipitation, thereby enhancing alloy plasticity. However, when the proportion of alloying elements exceeds the solubility limit of the α-Al matrix at specific heat treatment temperatures, coarse residual phases remain intergranular, thereby significantly impairing the mechanical properties of the alloy. This study provides a reference for the optimal addition level of the main strengthening elements in Al‑Zn‑Mg‑Cu alloys.
Achieving optimal strength-conductivity balance in cast Al-2.3Fe-Mg-Si alloys via Mg/Si ratio regulation
The Al-2.3Fe eutectic alloy is regarded as a promising substitute for Cu conductors in automotive motors owing to its excellent castability and low resistivity. However, its application is restricted by the mutually exclusive relationship between electrical conductivity and mechanical strength. The microstructure and mechanical properties of Al-2.3Fe alloy were modified through Mg/Si alloying combined with T6 heat treatment in this work, leading to the development of a high-performance cast Al-2.3Fe-Mg-Si alloy. In the Al-2.3Fe-0.40Mg-0.72Si (Mg/Si=0.56) alloy subjected to T6 treatment, an electrical conductivity of (52.5±0.6)% IACS is achieved, while the ultimate tensile strength is significantly enhanced to 309.5±5.6 MPa. The addition of Mg and Si brings about marked changes in the solidification process of the Al-2.3Fe alloy, resulting in considerable variations in both the morphology of the second phase and its phase constitution. The aging behavior of the alloy is governed by second phase and solid solubility. Through optimization of the Mg/Si ratio, the aging response can be effectively enhanced. At the ratio of Mg/Si=0.56, a balance is achieved between solid solubility and precipitation, while simultaneously minimizing the detrimental impact on electrical conductivity and reaching the best mechanical properties and electrical conductivity in peak-aged Al-2.3Fe-xMg-ySi alloy. This work providing valuable insights for developing advanced conductor materials.
