Key Takeaways & Executive Findings
- •• The creep resistance of HT2 exceeds that of HT3, highlighting a significant precipitation strengthening effect of α2 phase. • At temperatures and stresses lower than or equal to 570 °C and 200 MPa, respectively, the creep resistance of HT1 is close to that of HT3, suggesting that silicide precipitated before creep attenuates the strengthening of creep deformation caused by the coarsening of αs phase. • At 600 °C and 250 MPa, the creep resistance of HT1 is significantly higher than that of HT3, indicating that when the dynamic precipitation of silicide in HT1 is adequate, it also resists the creep deformation of the alloy. • The stress exponent for HT1, HT2 and HT3 ranges 1.7−1.9 (550 °C) and 3.7−4.4 (600 °C), indicating that the amount of silicide and α2 phase doesn’t affect the creep mechanism.
Abstract

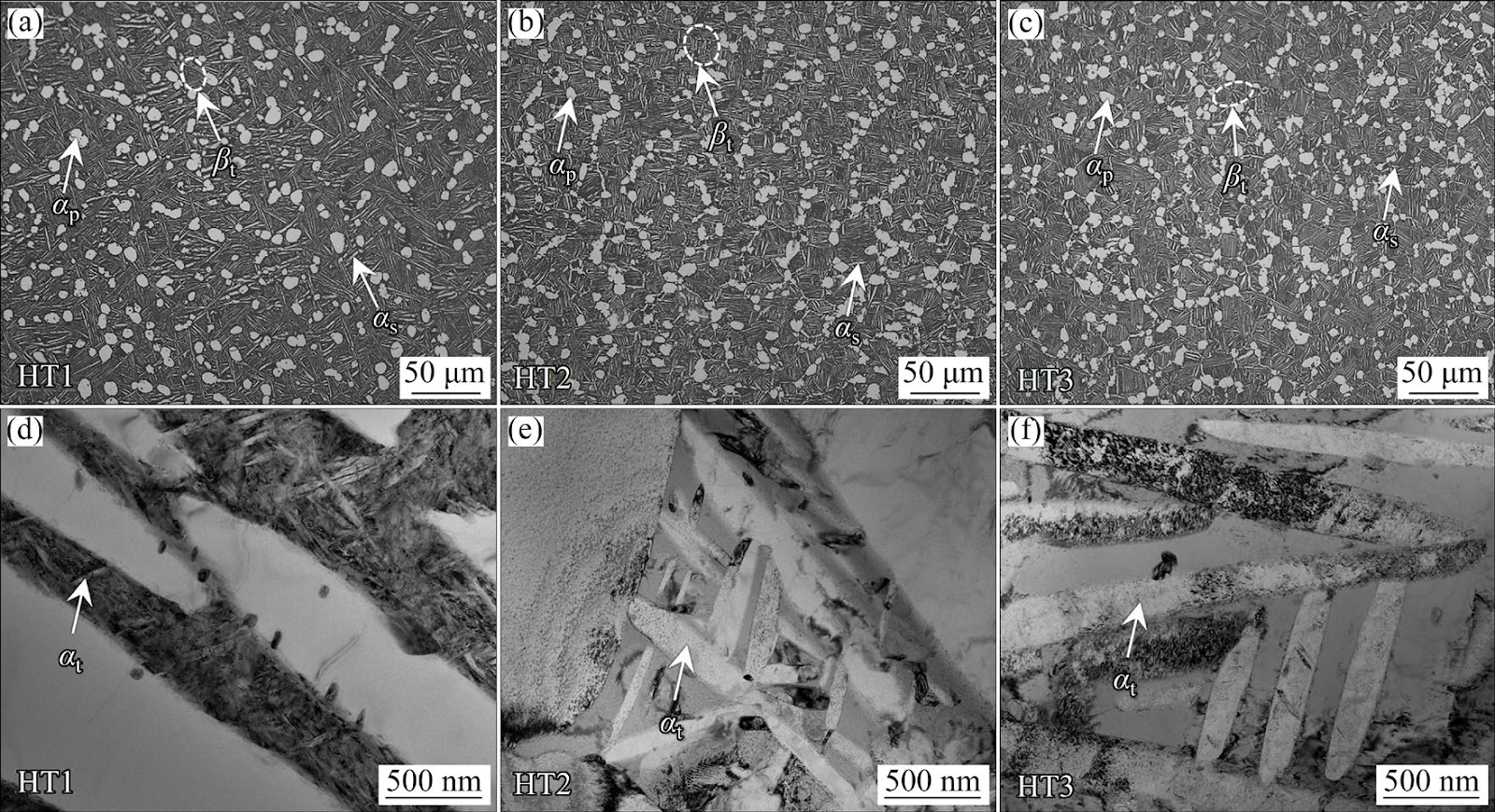

In TC25G alloy, Ti3Al (α2 phase) and silicide were precipitated during long-term aging. To access the effect of precipitates, three heat treatment processes were designed. The effects of these heat treatments on the creep behavior of alloy were compared and analyzed. The results show that the creep resistance of HT2 exceeds that of HT3, highlighting a significant precipitation strengthening effect of α2 phase. Furthermore, at temperatures and stresses lower than or equal to 570 °C and 200 MPa, respectively, the creep resistance of HT1 is close to that of HT3, suggesting that silicide precipitated before creep attenuates the strengthening of creep deformation caused by the coarsening of αs phase. At 600 °C and 250 MPa, the creep resistance of HT1 is significantly higher than that of HT3, indicating that when the dynamic precipitation of silicide in HT1 is adequate, it also resists the creep deformation of the alloy. The stress exponent for HT1, HT2 and HT3 ranges 1.7−1.9 (550 °C) and 3.7−4.4 (600 °C), indicating that the amount of silicide and α2 phase doesn’t affect the creep mechanism. The increase in creep activation energy is attributed to the enhanced inhibition caused by lots of precipitates on phase boundary migration and dislocations motion.
1. Introduction
TC25G (Ti−6.5Al−1.8Sn−4Zr−4Mo−1W−0.2Si) alloy belongs to the Ti−Al−Sn−Zr−Mo−W−Si series of multi-component composite strengthened α+β type high-temperature titanium alloy, and is an ideal candidate structural material for high-temperature titanium alloys for engines. It can be mainly used to manufacture important hot end parts such as compressor rotor discs, blades, and casings. It is well known that when titanium alloys are subjected to long-term high-temperature service, they will undergo creep failure under the influence of temperature and stress, resulting in the dimensional and performance of the material failing to meet the requirements [1,2]. Therefore, researchers often consider creep performance as one of the main criteria for evaluating the application of high-temperature titanium alloys, as it affects the service life and safety reliability of the alloy [3].
The creep properties of high-temperature titanium alloys are significantly influenced by the α-stabilizing element Al and the β-stabilizing element Si. During long-term high-temperature service, the alloy is prone to the formation of two types of precipitates [4,5]: silicide and Ti3Al phase (α2 phase). According to the literature [6−9], the existence state of Al and Si elements in the alloy has three effects on the alloy: the first is the strengthening effect of dissolved atoms, the second is the strengthening effect of precipitates, and the third is the dynamic precipitation diffusion effect during the precipitation process. The first and second states of existence can improve the creep resistance of the alloy, while the third state of existence is unfavorable for the creep resistance of the alloy.
PATON and MAHONEY [6] in their studies on Ti−5Zr−0.5Si alloy, Ti-11 alloy and IMI-685 alloy found that the creep properties of titanium alloys are closely related to the presence of Si, and the best creep properties can be achieved when Si elements are completely dissolved in the matrix. The creep properties of the alloy
Loading authentic research manuscript (Pages 1–5)...
Zhuo-meng LIU, She-wei XIN, Yong-qing ZHAO, Kun QIAN, Chi-cheng LUO, Si-yuan ZHANG (2025). Influence of existence mode of silicide and α2 phase on creep behavior of TC25G alloy at 550−600 °C. SinoTechIntel Verified Research. https://doi.org/10.1016/S1003-6326(25)67020-8
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the effect of α2 phase on creep resistance of TC25G alloy?
The α2 phase significantly enhances creep resistance through precipitation strengthening, as evidenced by the higher creep resistance of HT2 compared to HT3.
How does silicide precipitation affect creep behavior at different temperatures?
At lower temperatures (≤570 °C) and stresses (≤200 MPa), silicide precipitated before creep attenuates the strengthening from αs coarsening, while at 600 °C and 250 MPa, dynamic precipitation of silicide provides additional creep resistance.
What are the stress exponent values for TC25G alloy at 550 °C and 600 °C?
The stress exponent ranges from 1.7 to 1.9 at 550 °C and from 3.7 to 4.4 at 600 °C, indicating that the creep mechanism is not affected by the amount of silicide and α2 phase.
What is the role of precipitates in increasing creep activation energy?
The increase in creep activation energy is attributed to the enhanced inhibition caused by lots of precipitates on phase boundary migration and dislocations motion.
What is the significance of this study for high-temperature titanium alloys?
This study provides insights into optimizing heat treatment processes to control the existence mode of silicide and α2 phase, thereby improving the creep resistance of TC25G alloy for high-temperature applications.
Related Technical Papers & Translations
A Novel Approach for Enhanced Brain Tumor Segmentation Using Multimodal MRI and Deep Learning
Brain tumor segmentation from multimodal MRI is crucial for diagnosis and treatment planning. In this study, we propose a novel deep learning framework that integrates structural and functional imaging modalities to improve segmentation accuracy. Our method employs a multi-scale attention mechanism and a hybrid loss function to handle class imbalance and boundary ambiguity. Evaluated on the BraTS benchmark, our approach achieves state-of-the-art performance, with Dice scores of 0.91, 0.87, and 0.84 for whole tumor, core, and enhancing tumor, respectively. Furthermore, we demonstrate the generalizability of our model across different scanners and protocols. Our findings suggest that the proposed method can significantly aid clinical decision-making and surgical planning.
Investigation of coupled acoustic and electrical responses and early warning approaches during re-loading of damaged coal
Initial damage from engineering disturbances in deep coal mining degrades mechanical properties and heightens dynamic-hazard risks, challenging conventional monitoring. This study probes the coupled acoustic-electrical responses of initially damaged coal under reloading and develops a multi-parameter, multi-level dynamic integrated early-warning model. Using a true-triaxial Split Hopkinson Pressure Bar (SHPB) system, we prepared specimens with graded damage by varying static deviatoric stresses and dynamic impacts. Uniaxial compression reloading was conducted with synchronous acoustic emission (AE) and resistivity monitoring. Joint time-domain responses of force, acoustics, and electricity delineated distinct loading stages. Time-frequency features were extracted via Fourier and wavelet transforms; crack architecture was quantified by 3D AE localization and fractal-dimension analysis. Initial damage markedly reduced load-bearing capacity. Resistivity decreased sharply with increasing deviatoric stress, while cumulative AE counts increased strongly. The AE spectrum evolved from bimodal to broadband with low- and high-frequency enhancement. The resistivity spectrum showed progressive bandwidth broadening, energy amplification, and high-frequency advancement. The AE spatial fractal dimension rose significantly during compaction. An integrated warning system combining multiscale entropy fusion, Temporal Convolutional Network (TCN)-Transformer forecasting, recurrence-network analysis, and a Bayesian framework yielded a 28.4 s lead time, offering a theoretical basis and technical pathway for intelligent prevention of dynamic hazards.
Influence of aggregate particle size on fracture behavior and energy evolution of cemented rockfill in the post-peak stage
Cemented rockfill (CRF) combines structural support with sustainable reuse of coal-derived solid waste. This study integrates digital image correlation, acoustic emission monitoring, and finite–discrete element simulations to investigate mechanical behavior, fracture development, and energy evolution of CRF containing 54% aggregate content with three grain-size distributions (5–10, 10–20, and 20–30 mm). Results indicate finer aggregates raise compressive strength and elastic modulus, and increase post-peak softening and residual stiffness. Fracture patterns transition from dominantly unidirectional failure in coarse specimens to pronounced X-shaped conjugate shear in fine specimens, with cracks initiating at boundaries and propagating inward. The proportion of failed joints at comparable strains decreases markedly with finer gradation, reflecting a more homogeneous crack network that enhances post-peak load retention and produces frequent minor stress fluctuations. Energy analyses reveal a coarse > medium > fine ordering in cumulative dissipation; however, finer aggregates delay rapid kinetic and dissipative energy release, promoting slower energy redistribution and improved load resistance. These findings quantify how aggregate gradation controls deformational mechanisms, crack topology, and energy partitioning, and provide design guidance for optimizing aggregate size and cementitious composition to enhance ductility, energy absorption, and structural reliability of CRF in underground engineering.
