Key Takeaways & Executive Findings
- •• Reactive phosphate emulsifier ANPEO10-P1 enables in-situ phosphatization, providing long-term corrosion protection without flash rust. • MMA-BA coating achieved exceptional durability on Q235 carbon steel, withstanding 1224 h (51 d) of immersion before failure. • St-BA coating maintained high impedance (>108 Ω·cm2) on 5052 aluminum alloy for 480 h (20 d), outperforming commercial coatings. • The synthesized latexes achieved ~99% conversion and ~50% solid content, demonstrating efficient and scalable production.
Abstract
Waterborne acrylic coatings are widely utilized due to their cost-effectiveness, high transparency, strong resistance to weather and chemicals, impressive mechanical properties, and excellent adhesion to various substrates. In these coatings, a reactive emulsifier containing phosphate groups can be integrated into the molecular chain during polymerization, which enhances the coating's compactness and corrosion resistance. This work focuses on the synthesis of styrene-butyl acrylate (St-BA) latex and methyl methacrylate-butyl acrylate (MMA-BA) latex using the reactive phosphate emulsifier ANPEO10-P1 through seed emulsion polymerization, achieving a conversion rate of approximately 99% and a solid content close to 50%. The resulting coatings from St-BA and MMA-BA latexes demonstrated long-term corrosion protection for carbon steel and aluminum alloy due to in-situ phosphatization, effectively preventing flash rust. Notably, the MMA-BA coating exhibited remarkable durability, enduring immersion for up to 1224 h (51 d) on Q235 carbon steel before reaching the failure threshold (|Z|0.01Hz£106 Ω·cm2) on Q235 carbon steel. On 5052 aluminum alloy, the St-BA coating maintained |Z|0.01Hz>108 Ω·cm2 for 480 h (20 d). Furthermore, the corrosion resistance of St-BA and MMA-BA coatings on Q235 steel sheet and 5052 aluminum alloy surpassed that of commercially available MMA-BA and St-BA coatings after immersion in a 3.5 wt% NaCl aqueous solution. This work also delves into the anticorrosion mechanism of MMA-BA and St-BA coatings.
1. Introduction
Metal corrosion is a significant issue in various industries, resulting in substantial economic losses and safety concerns [1]. As a result, corrosion inhibition has garnered significant attention and extensive research. Different approaches have been employed to safeguard metals from corrosion, including surface coating technology [2, 3], development of new alloys [4, 5], cathodic protection [6], and other methods. Among these strategies, surface coating technology stands out as a widely utilized and cost-efficient technique [7]. It is commonly employed in industrial settings to create a protective barrier between metals and corrosive environments. By applying a protective coating to the metal surface, its corrosion resistance can be greatly enhanced, leading to improved durability [8, 9]. This approach effectively shields the metal from the corrosive medium, ultimately reducing the corrosion process.
Waterborne coatings are well-known for their environmental benefits and ability to lower volatile organic compounds (VOC) emissions, making them a preferred option across different industries [10, 11]. Among waterborne coatings, waterborne acrylic coatings stand out in the realm of metal corrosion protection due to their cost-effectiveness, durability against weather conditions, resistance to chemicals, and mechanical properties [12]. Nevertheless, waterborne acrylic latexes have clear drawbacks when compared to solvent-based coatings in terms of coating density and flash rust [13 −15]. Additionally, the traditional non-reactive emulsifier used in waterborne acrylic coatings is susceptible to desorption and migration, which can negatively impact product performance.
Loading authentic research manuscript (Pages 1–5)...
YUAN Rui, TANG Zhi-xing, XIAO Min-di, CAI Min-zhao, ZHAO Zi-long, GU Lin (2026). In-situ phosphatization of waterborne acrylic latex coatings for long-term corrosion protection of metal without flash rust. Journal of Central South University. https://doi.org/10.1007/s11771-025-6116-y
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main innovation of this study?
The study introduces a reactive phosphate emulsifier (ANPEO10-P1) that enables in-situ phosphatization in waterborne acrylic latex coatings, providing long-term corrosion protection without flash rust.
How long did the MMA-BA coating protect Q235 carbon steel?
The MMA-BA coating endured immersion for up to 1224 hours (51 days) on Q235 carbon steel before reaching the failure threshold.
What performance did the St-BA coating achieve on aluminum alloy?
On 5052 aluminum alloy, the St-BA coating maintained a high impedance (>108 Ω·cm2) for 480 hours (20 days), indicating excellent corrosion resistance.
How do these coatings compare to commercial ones?

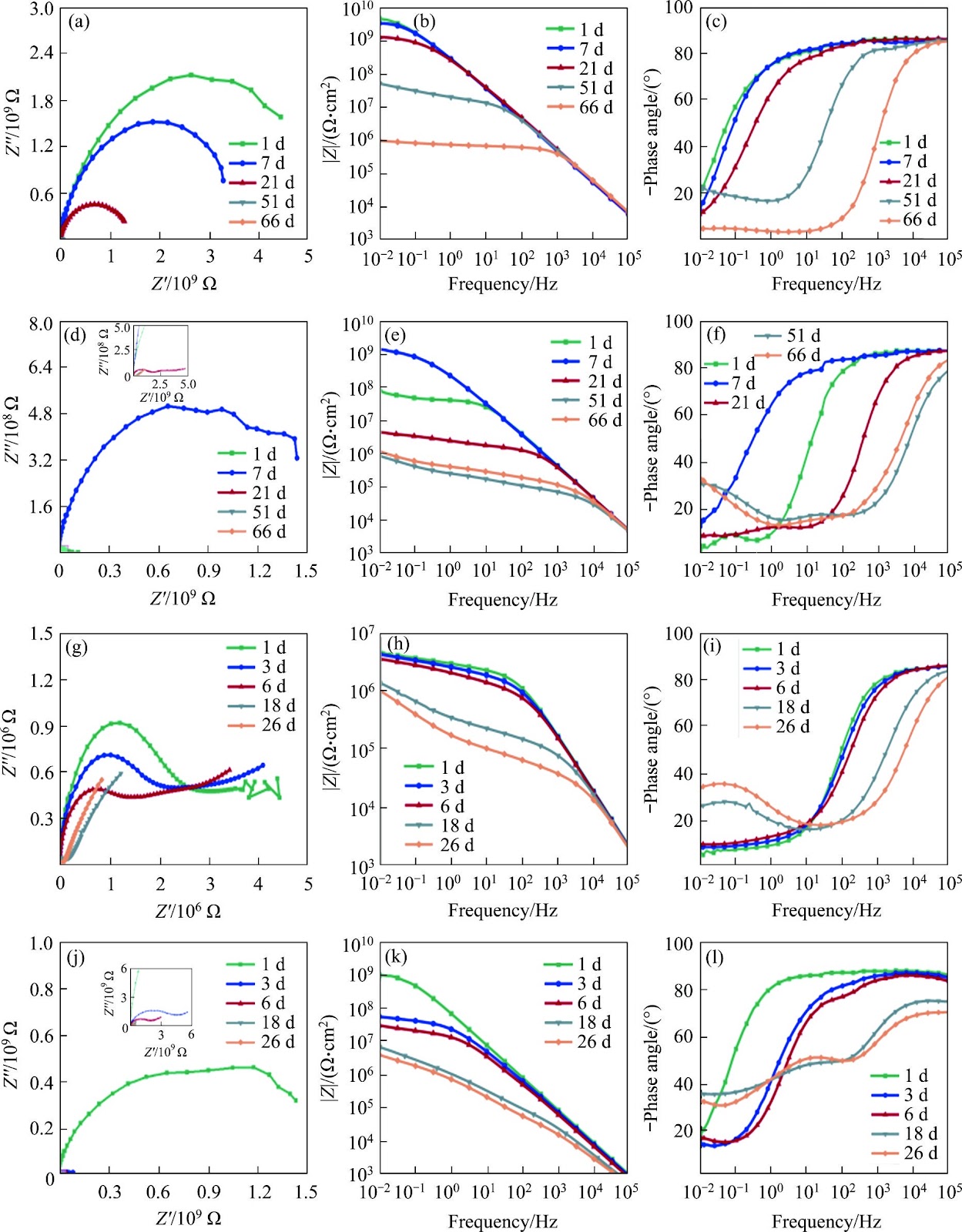

The synthesized St-BA and MMA-BA coatings outperformed commercially available counterparts in corrosion resistance after immersion in 3.5 wt% NaCl solution.
What are the key benefits of using reactive phosphate emulsifiers?
Reactive phosphate emulsifiers are chemically incorporated into the polymer chain, reducing desorption issues and enhancing coating compactness and corrosion resistance through phosphate passivation film formation.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
