Key Takeaways & Executive Findings
- •• Mn(II) reduction on tungsten electrode is quasi-reversible and diffusion-controlled, with kinetic parameters determined at 973–1048 K. • Controlled-potential electrolysis at −1.5 V for 8 h reduced MnCl2 impurity from 0.62 wt.% to 0.037 wt.%, achieving 94.14% removal efficiency. • Removal of Mn(II) impurity significantly improved magnesium purity from 98.59% to 99.94% and promoted formation of large globules. • The proposed method is green and effective for separating metal ion impurities in molten salt electrolytes for high-purity magnesium production.
Abstract

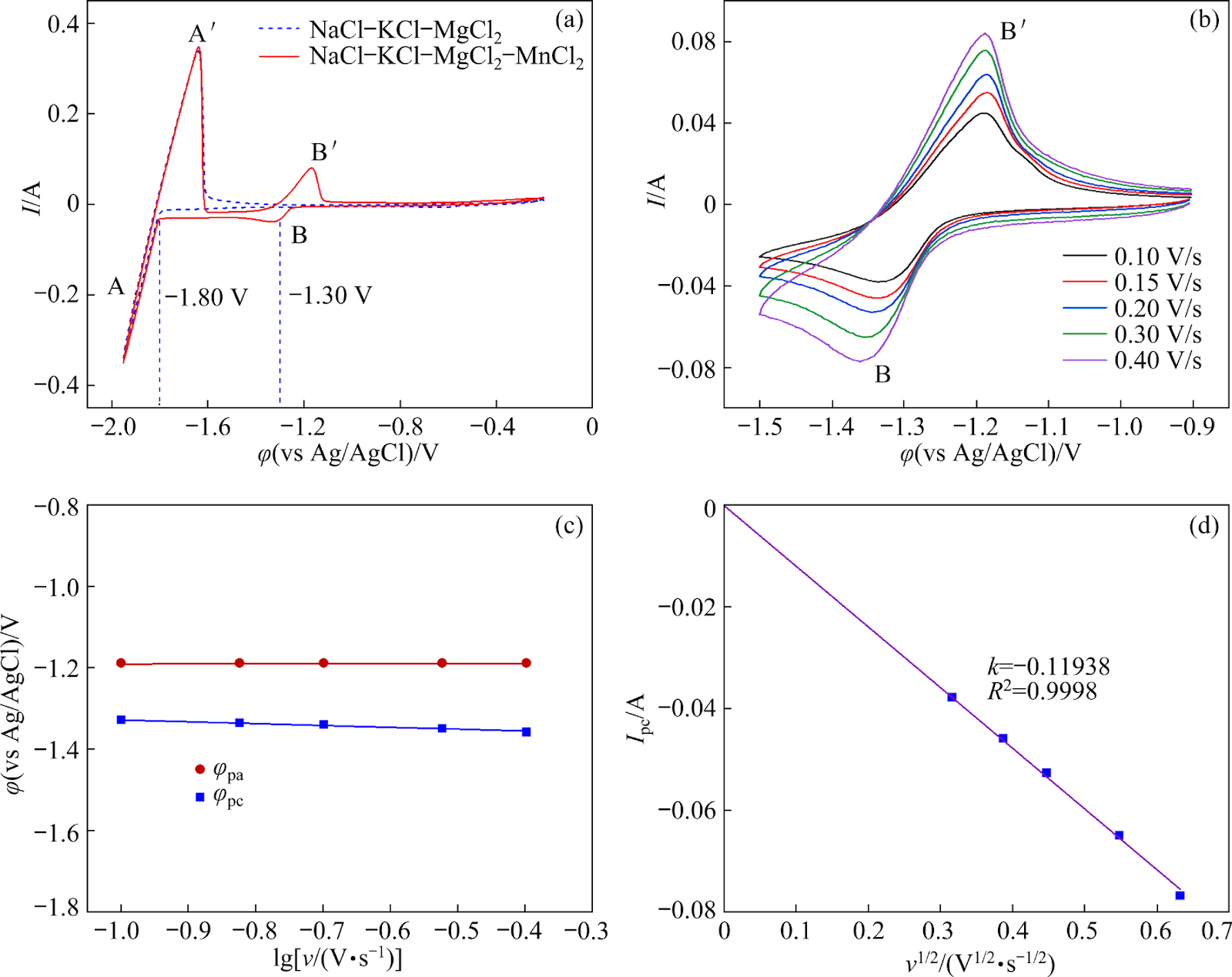

The electrochemical separation of Mn(II) impurity from molten NaCl−KCl−MgCl2 was systematically investigated to facilitate the electrolytic production of high-purity magnesium. The reduction of Mn(II) to Mn metal on tungsten electrode was a quasi-reversible process controlled by diffusion. The apparent standard potential and exchange current density of Mn(II)/Mn(0) electrode reaction were determined at temperatures ranging from 973 to 1048 K. Solid Mn metal generated during electrolysis aggregated into irregular clumps and adsorbed some needle-like MgO, imposing a detrimental effect on both the aggregation and the purity of magnesium metal. After electrolysis at −1.5 V in molten NaCl−KCl−MgCl2−0.62wt.%MnCl2 for 8 h, the concentration of MnCl2 impurity decreased to 0.037 wt.%, achieving a removal efficiency of 94.14%. When direct electrolysis was performed in molten NaCl−KCl−MgCl2−0.62wt.%MnCl2, the obtained magnesium metal was small blocks with a caviar-like appearance, and the purity was just 98.59%. In contrast, a large globule of magnesium metal was obtained when electrolysis was performed in the purified electrolyte, and its purity was improved to 99.94%. The controlled-potential electrolysis proposed in this work has been verified to be a green and practically effective method to separate the metal ion impurities from molten electrolyte for high purity magnesium extraction.
1. Introduction
Magnesium is well-known for its excellent properties and has been widely applied in the automotive, aerospace, 3C (computer, communication and consumer electronics) and other industrial fields in the world [1−4]. The global magnesium market is growing at a compound annual growth rate of about 5%, and is forecasted to reach 1.6×106 t by 2027 [5]. The electrolytic technology based on the molten salt electrolysis of anhydrous magnesium chloride or carnallite [6], is one of the two main techniques for the industrial production of metallic magnesium on a worldwide scale due to the significant advantages such as continuous operation, relatively low energy consumption, large-scale production, and more environmental friendliness [7]. Since MgCl2 has an inexhaustible supply from brines, the electrolytic technology is considered to have greater application prospects in the future.
The impurities, especially the metal ion impurities such as Fe, Ni, Mn, Cu, and Al ions, are detrimental to both the magnesium purity and current efficiency [8]. The elimination of ionic impurities is necessary for the electrolytic magnesium production. On the other hand, electrorefining in molten salts is practicable for the recycling of magnesium metal, which is regarded as a crucial technology to expand the usage of magnesium in the future and fits well with the concept of green chemistry regarding the circular economy and near zero-emission [9]. There is no doubt that some other metal impurities are contained in the magnesium scrap, and their contamination of magnesium metal should be properly controlled in the electrorefining process. Therefore, the investigation on the electrochemical behavior of impurity elements is of great importance to both the electrolytic production of magnesium metal and the electro-recycling of magnesium scrap.
The electrochemical behaviors of Fe, Ni, Mn, Cu and Al have been extensively explored in melts consisting of alkali metal chlorides [10−18]. However, the electrolysis and electrorefining of magnesium are usually conducted in the melts containing MgCl2 as a main ingredient, such as the NaCl−KCl−MgCl2 system or the NaCl−CaCl2−MgCl2 system. The reported results may not be entirely accurate or applicable to these systems.
Loading authentic research manuscript (Pages 1–5)...
Zhi-wen ZHAO, Zheng ZENG, Yan-ping WANG, Pei TANG, Chang JIANG, Zhong-sheng HUA (2025). Electrochemical separation of Mn(II) impurity from molten salt electrolyte for magnesium electrolysis. SinoTechIntel Verified Research. https://doi.org/10.1016/S1003-6326(25)67012-9
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main objective of this study?
The main objective is to systematically investigate the electrochemical separation of Mn(II) impurity from molten NaCl−KCl−MgCl2 electrolyte to facilitate the production of high-purity magnesium.
How was Mn(II) impurity removed from the molten salt?
Mn(II) impurity was removed via controlled-potential electrolysis at −1.5 V for 8 hours, which reduced the MnCl2 concentration from 0.62 wt.% to 0.037 wt.%, achieving a removal efficiency of 94.14%.
What effect did Mn(II) impurity have on magnesium purity?
The presence of Mn(II) impurity resulted in magnesium metal with a caviar-like appearance and a purity of only 98.59%. After removal, the purity improved to 99.94% and the metal formed large globules.
What is the significance of this research for magnesium production?
This research provides a green and practically effective method for separating metal ion impurities from molten salt electrolytes, which is crucial for producing high-purity magnesium and improving current efficiency in industrial electrolysis.
What are the key findings regarding the electrochemical behavior of Mn(II)?
The reduction of Mn(II) to Mn on a tungsten electrode is a quasi-reversible process controlled by diffusion. The apparent standard potential and exchange current density were determined at temperatures from 973 to 1048 K.
Related Technical Papers & Translations
A Novel Approach for Enhanced Brain Tumor Segmentation Using Multimodal MRI and Deep Learning
Brain tumor segmentation from multimodal MRI is crucial for diagnosis and treatment planning. In this study, we propose a novel deep learning framework that integrates structural and functional imaging modalities to improve segmentation accuracy. Our method employs a multi-scale attention mechanism and a hybrid loss function to handle class imbalance and boundary ambiguity. Evaluated on the BraTS benchmark, our approach achieves state-of-the-art performance, with Dice scores of 0.91, 0.87, and 0.84 for whole tumor, core, and enhancing tumor, respectively. Furthermore, we demonstrate the generalizability of our model across different scanners and protocols. Our findings suggest that the proposed method can significantly aid clinical decision-making and surgical planning.
Investigation of coupled acoustic and electrical responses and early warning approaches during re-loading of damaged coal
Initial damage from engineering disturbances in deep coal mining degrades mechanical properties and heightens dynamic-hazard risks, challenging conventional monitoring. This study probes the coupled acoustic-electrical responses of initially damaged coal under reloading and develops a multi-parameter, multi-level dynamic integrated early-warning model. Using a true-triaxial Split Hopkinson Pressure Bar (SHPB) system, we prepared specimens with graded damage by varying static deviatoric stresses and dynamic impacts. Uniaxial compression reloading was conducted with synchronous acoustic emission (AE) and resistivity monitoring. Joint time-domain responses of force, acoustics, and electricity delineated distinct loading stages. Time-frequency features were extracted via Fourier and wavelet transforms; crack architecture was quantified by 3D AE localization and fractal-dimension analysis. Initial damage markedly reduced load-bearing capacity. Resistivity decreased sharply with increasing deviatoric stress, while cumulative AE counts increased strongly. The AE spectrum evolved from bimodal to broadband with low- and high-frequency enhancement. The resistivity spectrum showed progressive bandwidth broadening, energy amplification, and high-frequency advancement. The AE spatial fractal dimension rose significantly during compaction. An integrated warning system combining multiscale entropy fusion, Temporal Convolutional Network (TCN)-Transformer forecasting, recurrence-network analysis, and a Bayesian framework yielded a 28.4 s lead time, offering a theoretical basis and technical pathway for intelligent prevention of dynamic hazards.
Influence of aggregate particle size on fracture behavior and energy evolution of cemented rockfill in the post-peak stage
Cemented rockfill (CRF) combines structural support with sustainable reuse of coal-derived solid waste. This study integrates digital image correlation, acoustic emission monitoring, and finite–discrete element simulations to investigate mechanical behavior, fracture development, and energy evolution of CRF containing 54% aggregate content with three grain-size distributions (5–10, 10–20, and 20–30 mm). Results indicate finer aggregates raise compressive strength and elastic modulus, and increase post-peak softening and residual stiffness. Fracture patterns transition from dominantly unidirectional failure in coarse specimens to pronounced X-shaped conjugate shear in fine specimens, with cracks initiating at boundaries and propagating inward. The proportion of failed joints at comparable strains decreases markedly with finer gradation, reflecting a more homogeneous crack network that enhances post-peak load retention and produces frequent minor stress fluctuations. Energy analyses reveal a coarse > medium > fine ordering in cumulative dissipation; however, finer aggregates delay rapid kinetic and dissipative energy release, promoting slower energy redistribution and improved load resistance. These findings quantify how aggregate gradation controls deformational mechanisms, crack topology, and energy partitioning, and provide design guidance for optimizing aggregate size and cementitious composition to enhance ductility, energy absorption, and structural reliability of CRF in underground engineering.
