Key Takeaways & Executive Findings
- •• Cryogenic treatment combined with cross-rolling significantly enhances the mechanical properties of AZ31 Mg alloy, with the 3-pass sample achieving the highest tensile strength (351 MPa) and hardness (76.1 HV) with excellent uniformity. • The 2-pass sample exhibits superior ductility but suffers from poor hardness evenness, indicating a trade-off between strength and ductility depending on the number of rolling passes. • The strengthening mechanism for the 3-pass sample is attributed to fine grains, bimodal structure, high dislocation density, and precipitation strengthening, providing a comprehensive understanding of the microstructural evolution. • Increasing the number of passes to 4 or 5 leads to a decrease in overall performance due to repeated heat preservation, highlighting the importance of optimizing the number of passes in the process.
Abstract

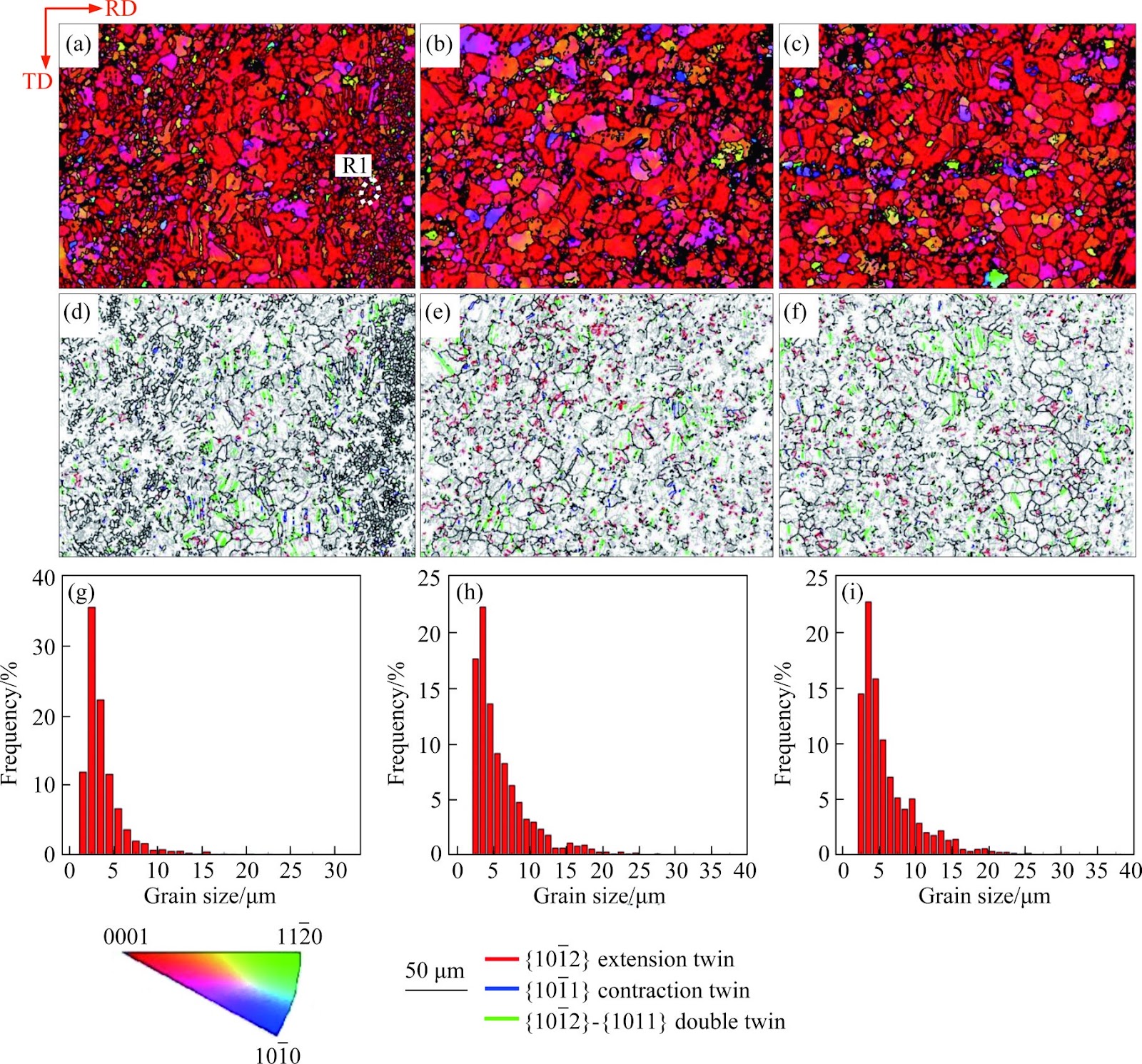

In this paper, the multi cross-rolling and cryogenic treatment were adopted to process the AZ31 Mg alloy to study the influence of passes and cryogenic treatment on cross-rolled AZ31 Mg alloy. The tensile properties and hardness were tested. The microstructure was characterized using electron backscatter diffraction (EBSD), transmission electron microscopy (TEM), and scanning electron microscopy (SEM) in order to elucidate the influencing mechanism. The results indicate that the treatment method can significantly improve the mechanical properties of AZ31 Mg alloy. The 3-pass sample processed by cryogenic treatment shows the highest strength (351 MPa) and has the highest hardness (76.1HV) and best hardness uniformity (standard deviation=0.9HV). The 2-pass sample has the highest ductility among all the samples but poor hardness evenness. The strengthening mechanism of 3-pass sample can be attributed to the fine grains, bimodal structure, high dislocation density, and precipitation strengthening. Due to repeated heat preservation of 4-pass and 5-pass, their comprehensive performances decrease.
1. Introduction
As a light-weight structural material, Mg alloy has broad applications because of its advantages, such as high specific strength and stiffness, high conductivity and convenience of recovery [1, 2]. However, due to the hexagonal close-packed (HCP) structure, its low absolute strength and low-temperature processability limit its development and application [3−6]. So, improving the mechanical properties of Mg alloy, broadening its applied range is greatly significant. Developing new processing technique is a practical method.
Compared with traditional rolling, cross-rolling can reduce the intensity of basal texture and improve anisotropy [7−9]. Moreover, PEI et al [10] reported that multi-pass high speed rolling can promote twinning-induced dynamic recrystallization (TDRX) mechanism and disperse grain orientations. MA et al [11] used multi-pass rolling in the second stage of rolling and found that coarse grain and twinning decreased at 3-pass. Due to the superiority of cryogenic treatment in the field of steel and iron [12−14], many researchers pay attention to the application of cryogenic treatment in Mg alloy [15]. KUMAR et al [16] stated that after cryogenic treatment, the rolled AZ31B Mg alloy presents higher micro-hardness, tensile stress (UTS), and yield strength (YS) than the rolled specimens due to grain refinement and the formation of Mg17Al12. CHEN et al [17] reported that the AZ31B Mg alloy gains greater strength though cryogenic rotary swaging than that at room temperature. DONG et al [18] indicated that the grain size of Mg-2Nd-4Zn Mg alloy was significantly refined and the number of second phase was increased by the cryogenic treatment. The main reasons of these situations can be attributed to that cryogenic treatment can make grains contract due to the characteristics of metal expanding when heated and contracting when cooled, changing the orientation of grain and introducing more dislocations. Meanwhile, cryogenic treatment has the function of promoting the precipitation of the second phases, which can improve the strength [19, 20]. However, the research of influence mechanism of cryogenic treatment combination of hot treatment is still limited.
Loading authentic research manuscript (Pages 1–5)...
LU Li-wei, PANG Hao-ran, SHEN Tian-yuan, XI Yu-ze, WU Yu-juan, WANG Wen, JING Lei, LIU Gang (2025). Effect of rolling passes on AZ31 Mg alloy subjected to cross-rolling and cryogenic treatment. Journal of Central South University. https://doi.org/10.1007/s11771-025-6095-z
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the effect of cryogenic treatment on AZ31 Mg alloy?
Cryogenic treatment significantly improves the mechanical properties of AZ31 Mg alloy by refining grains, increasing dislocation density, and promoting precipitation of second phases, leading to enhanced strength and hardness.
How does the number of rolling passes affect the properties of AZ31 Mg alloy?
The number of rolling passes influences the balance between strength and ductility. The 3-pass sample achieves the highest strength and hardness with good uniformity, while the 2-pass sample offers the best ductility but poorer hardness uniformity. Increasing to 4 or 5 passes reduces overall performance due to repeated heat preservation.
What are the main strengthening mechanisms observed in the 3-pass sample?
The strengthening mechanisms include fine grain size, bimodal structure, high dislocation density, and precipitation strengthening, which collectively contribute to the superior mechanical properties of the 3-pass sample.
Why does the 2-pass sample have poor hardness evenness?
The 2-pass sample exhibits poor hardness evenness likely due to less uniform microstructure and insufficient recrystallization compared to the 3-pass sample, which benefits from more complete grain refinement and precipitation.
What is the significance of combining cross-rolling and cryogenic treatment?
Combining cross-rolling and cryogenic treatment offers a practical method to enhance the mechanical properties of Mg alloys, addressing their low strength and processability limitations, and broadening their application range in lightweight structural components.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
