Key Takeaways & Executive Findings
- •• Annual extreme temperature range of CRTS II slab track is −1.4 to 49.8 °C, with vertical temperature gradients up to 30.15 °C/m. • High temperatures cause vertical joint deformation up to 0.828 mm, while low temperatures induce joint separation of 0.9–1.0 mm. • Interfacial damage is primarily driven by elevated temperatures, with damage area ratio reaching 95% and debonding ratio up to 84% in summer. • The thermo-mechanical coupling model provides a basis for predicting joint damage and guiding deformation control in CRTS II slab track.
Abstract

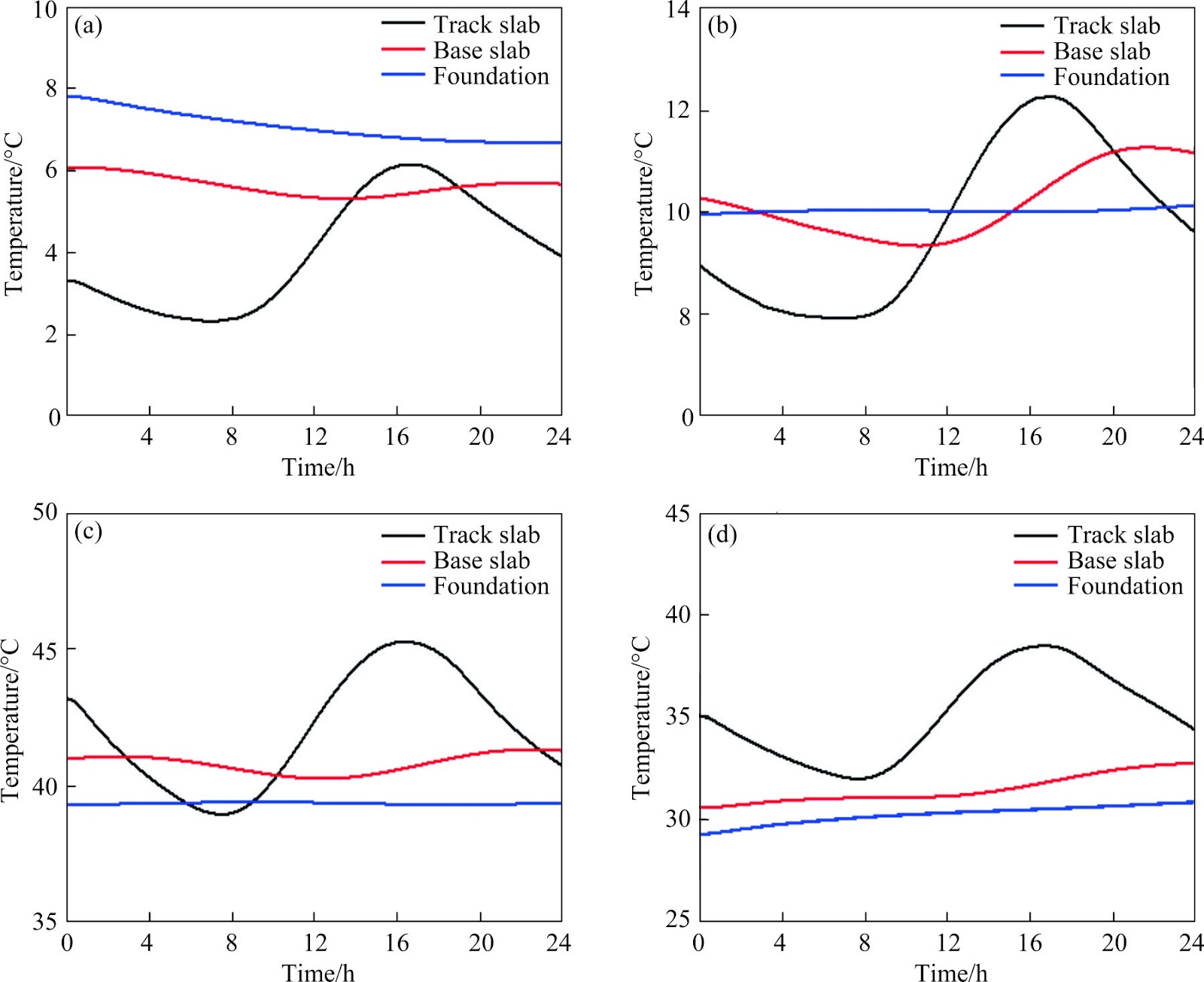

Arching and cracking of joints between slabs have become a problem in China Railway Track System (CRTS) II slab track. The slab track is susceptible to complex temperature variations as a longitudinal continuous structure. Based on measured data, a thermal-mechanical coupling model of the track was established. The deformation characteristics and interfacial damage behavior of joints under typical temperature fields were studied. The findings indicate that the annual extreme temperature range of the slab track, fluctuates from −1.4 to 49.8 ℃. The annual temperature gradient within the vertical depth range of 0 to 0.2 m of the track varies between −16.19 ℃/m and 30.15 ℃/m. The vertical deformation of joints is significantly influenced by high temperatures, with a maximum measured deformation of 0.828 mm. The joint seams are primarily affected by low temperatures, which lead to a separation of 0.9 to 1.0 mm. Conversely, interlayer damage of joints is predominantly influenced by elevated temperatures. In summer, the maximum ratio of interface damage area in the joint can reach up to 95%, with the maximum debonding area ratio can be as high as 84%. The research results can provide help for joint damage regularity and deformation control of CRTS II slab track.
1. Introduction
Due to its high smoothness, good integrity, and minimal maintenance work, slab track has been extensively used in high-speed railways all over the world [1, 2]. In the past two decades, the infrastructure of China’s high-speed railways has advanced significantly, and a domestically designed slab track system has been developed—the China Railway Track System (CRTS) [3]. CRTS II slab track is one of widely used slab tracks in China, with an operational mileage exceeding 4800 km [4, 5], as shown in Figure 1(a). CRTS II slab track includes rail, WJ-8 fastener, prefabricated track slab, cement emulsified asphalt mortar (CA mortar) layer, and base slab. The longitudinal connection between precast concrete slabs is carried out by joints, which are categorized into wide joint and narrow joint. Since the joint is a specially formed structure, its construction quality is difficult to control. Besides, the field observation shows that the temperature effect of slab track as a longitudinal continuous structure is very significant, especially at the joint. When the temperature is high, the joint arches vertically, whereas when the temperature is low, the joint contracts transversely, resulting in damage and deterioration between the joint and the track slab. Joint cracking is a common condition with crack widths typically ranging from 0.1 to 2.0 mm. Some joints are seriously damaged, as shown in Figure 1(b). The integrity and durability of the track structure are negatively impacted by the damage of CRTS II slab track joint, thereby jeopardizing train operating safety [6−8].
Temperature significantly impacts the static and dynamic characteristics of slab track, necessitating an investigation of its temperature field [9−12]. The real-time temperature distribution of track on bridges was investigated [13−16]. ZHANG et al [17] analyzed the temperature of longitudinal connection tracks in Beijing. The thermal impacts of the track on the plateau were investigated by CAI et al [18]. In the laboratory, SUN et al [19] simulated the high temperatures of the track in the tunnel. However, the environmental parameters involved have been oversimplified in the current study. Additionally, there is insufficient temperature field observation data for the slab track in operational condition. Improving the precision of temperature field models for slab track systems is urgently needed.
Loading authentic research manuscript (Pages 1–5)...
DONG Bo, CHEN Zhi-yuan, ZHU Hao, CAI Xiao-pei, ZHANG Xing, HE Xu (2025). Deformation characteristics and interfacial damage of CRTS II slab track joints under operating temperature conditions. Journal of Central South University. https://doi.org/10.1007/s11771-025-6065-5
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are the main temperature-induced deformation modes in CRTS II slab track joints?
High temperatures cause vertical arching of joints, with maximum deformation measured at 0.828 mm, while low temperatures lead to transverse contraction and joint separation of 0.9–1.0 mm.
How does temperature affect interfacial damage in CRTS II slab track joints?
Elevated temperatures predominantly drive interlayer damage, with the maximum interface damage area ratio reaching 95% and debonding area ratio up to 84% in summer.
What is the annual temperature range and gradient observed in the study?
The annual extreme temperature range of the slab track fluctuates from −1.4 to 49.8 °C, and the vertical temperature gradient within 0–0.2 m depth varies between −16.19 °C/m and 30.15 °C/m.
What method was used to analyze the thermal-mechanical behavior of the track?
A thermal-mechanical coupling model of the track was established based on measured temperature data to study deformation characteristics and interfacial damage behavior under typical temperature fields.
What are the practical implications of this research for CRTS II slab track maintenance?
The findings provide insights into joint damage regularity and deformation control, helping engineers predict and mitigate temperature-induced damage in CRTS II slab track joints.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
