Key Takeaways & Executive Findings
- •• The corrosion mechanism of nickel-based single-crystal superalloys in mixed Na2SO4/NaCl molten salts at 700 °C involves cyclic oxide layer formation and decomposition, leading to a protective NiO layer with a regenerating Al2O3 barrier. • Alloying elements Cr, Al, Ta, and particularly Re significantly improve thermal corrosion resistance, providing strategic directions for alloy composition design. • Gibbs free energy calculations of corrosion products help elucidate the influence of alloying elements on corrosion performance, enabling predictive insights for material selection. • The findings enhance understanding of low-temperature hot corrosion (600–750 °C) mechanisms, critical for aerospace and energy applications where superalloys face aggressive salt environments.
Abstract

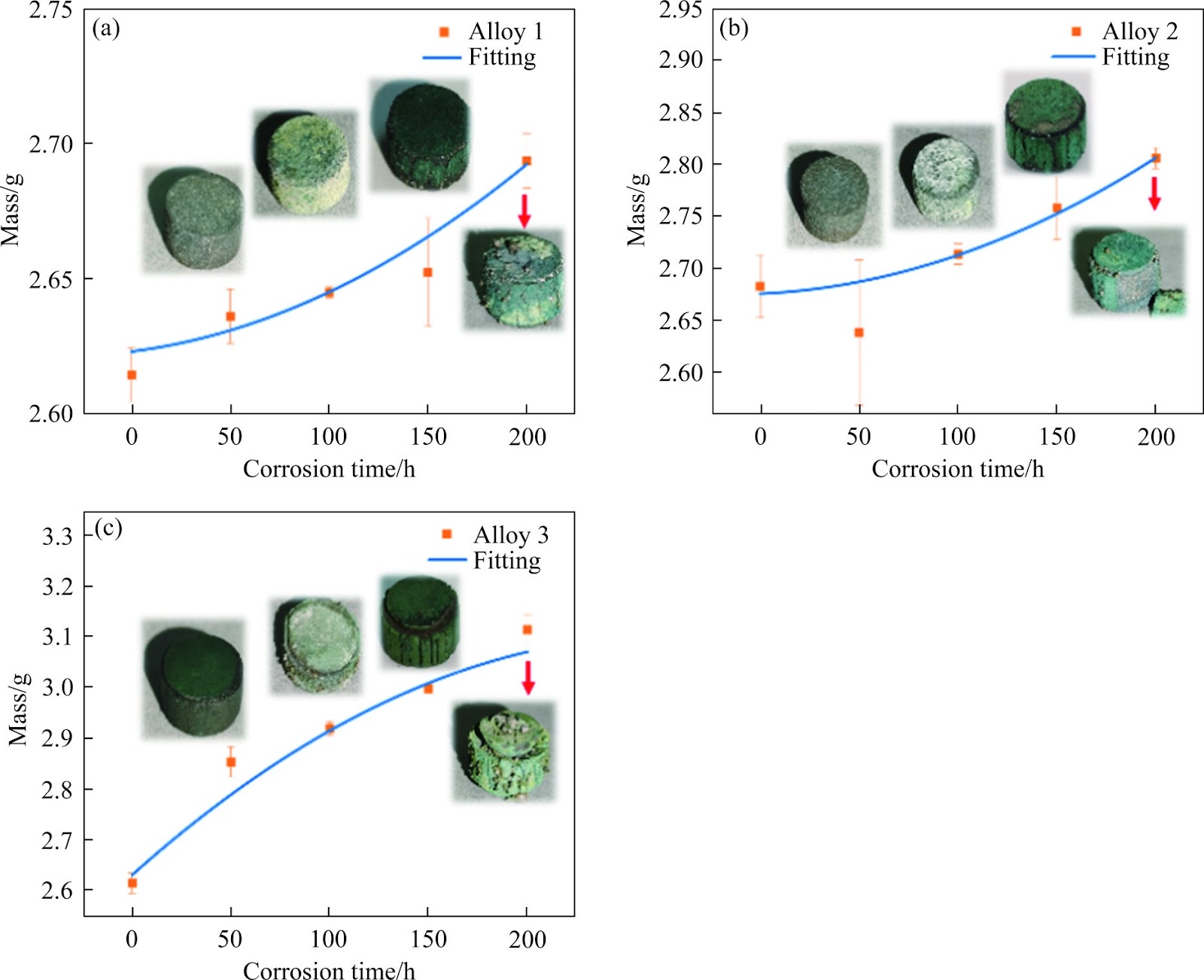

In this investigation, we examined the high-temperature corrosion behavior of three nickel-based single-crystal superalloys subjected to a mixed molten salt environment of Na2SO4 and NaCl at 700 °C, leading to a preliminary elucidation of their molten salt corrosion mechanisms. By further comparing the corrosion degree of the three nickel-based single-crystal superalloys combined with the Gibbs free energy calculation of the corrosion products, the influence of alloying elements on the corrosion performance of nickel-based single-crystal superalloys was analyzed. It was established that the corrosion mechanism of these nickel-based single-crystal superalloys predominantly involves a cyclic process of oxide layer formation and decomposition, ultimately resulting in the establishment of a protective layer principally composed of NiO, with a constantly regenerating Al2O3 barrier, impeding further alloy degradation. Furthermore, the inclusion of elements such as Cr, Al, Ta, and notably Re has been found to markedly improve the thermal corrosion resistance of the superalloys. These insights not only enhance our comprehension of the corrosion mechanisms pertinent to nickel-based superalloys, but also provide strategic directions for alloy composition refinement aimed at bolstering their corrosion resilience.
1. Introduction
Nickel-based single-crystal superalloys are widely used in aerospace and energy applications due to their excellent high-temperature mechanical properties [1, 2]. However, during the application of superalloys [3, 4], working in aggressive environments containing contaminants such as sodium, sulfur, and vanadium makes nickel-based single-crystal superalloys extremely susceptible to thermal corrosion [5, 6]. Therefore, there is an urgent need to study the thermal corrosion behavior of nickel-based single-crystal superalloy materials to provide a basis for the composition design of nickel-based single-crystal superalloys [7−9].
Generally speaking, the corrosion of superalloys in service can be categorized into two forms: high-temperature thermal corrosion and low-temperature thermal corrosion [8, 10]. High-temperature hot corrosion occurs mainly at 900 − 1000 ℃ and low-temperature hot corrosion occurs mainly at 600−750 ℃. Some studies focus on low-temperature hot corrosion at 700 ℃ [11, 12].
Corrosion resistance in nickel-based superalloys, particularly under low-temperature thermal conditions, is governed by a complex interplay of factors. Emerging research highlights the pivotal role of molten salt composition in dictating the corrosion dynamics of these high-temperature materials, which focused on the corrosion behavior of DZ40M and K452 alloys in NaCl molten salt at 700 ℃, emphasizing the influence of specific elements, C, Cr, W, Al and Ti, on their performance. Notably, Cr and Al emerge as critical role in enhancing corrosion resistance, whereas C and W may exacerbate the degradation process [13]. Whereas, relatively high concentrations of Cr, Co and Ti elements provide superalloys with better corrosion resistance to S and Cl elements [14].
Loading authentic research manuscript (Pages 1–5)...
LI Qian-yi, LIU Feng, WANG Zi, ZHAO Yun-xing, TAN Li-ming, HUANG Lan (2025). Corrosion behavior of three nickel-based single-crystal superalloys in mixed Na2SO4 and NaCl molten salts at 700 ℃. Journal of Central South University. https://doi.org/10.1007/s11771-025-6068-2
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the corrosion mechanism of nickel-based single-crystal superalloys in mixed Na2SO4 and NaCl molten salts at 700 °C?
The corrosion mechanism predominantly involves a cyclic process of oxide layer formation and decomposition, ultimately resulting in a protective layer principally composed of NiO, with a constantly regenerating Al2O3 barrier that impedes further alloy degradation.
Which alloying elements improve the thermal corrosion resistance of nickel-based single-crystal superalloys?
The inclusion of elements such as Cr, Al, Ta, and notably Re has been found to markedly improve the thermal corrosion resistance of the superalloys.
Why is the study of low-temperature hot corrosion at 700 °C important?
Low-temperature hot corrosion (600–750 °C) is a significant degradation mode for superalloys used in aerospace and energy applications, and understanding it is crucial for alloy composition design to enhance corrosion resilience.
How does the Gibbs free energy calculation contribute to the analysis?
Gibbs free energy calculations of corrosion products help compare the corrosion degree of the alloys and analyze the influence of alloying elements on corrosion performance, providing a thermodynamic basis for the observed behavior.
What are the practical implications of this research?
The insights enhance comprehension of corrosion mechanisms in nickel-based superalloys and provide strategic directions for alloy composition refinement aimed at bolstering corrosion resilience in aggressive molten salt environments.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
