Key Takeaways & Executive Findings
- •• Absidia spinosa, a filamentous fungus from coal mines, effectively inhibits coal spontaneous combustion by covering and repairing coal pores, reducing oxygen availability. • The fungus significantly alters coal's active functional groups, increasing ignition temperature by 25.34 °C and reducing total heat release by ~32.58%. • Genomic analysis reveals genes for oxygen consumption, small molecule degradation, and metabolic secretion, linking to coal decomposition pathways. • This eco-friendly biological method offers a sustainable alternative to traditional physical and chemical fire prevention techniques in goaf areas.
Abstract

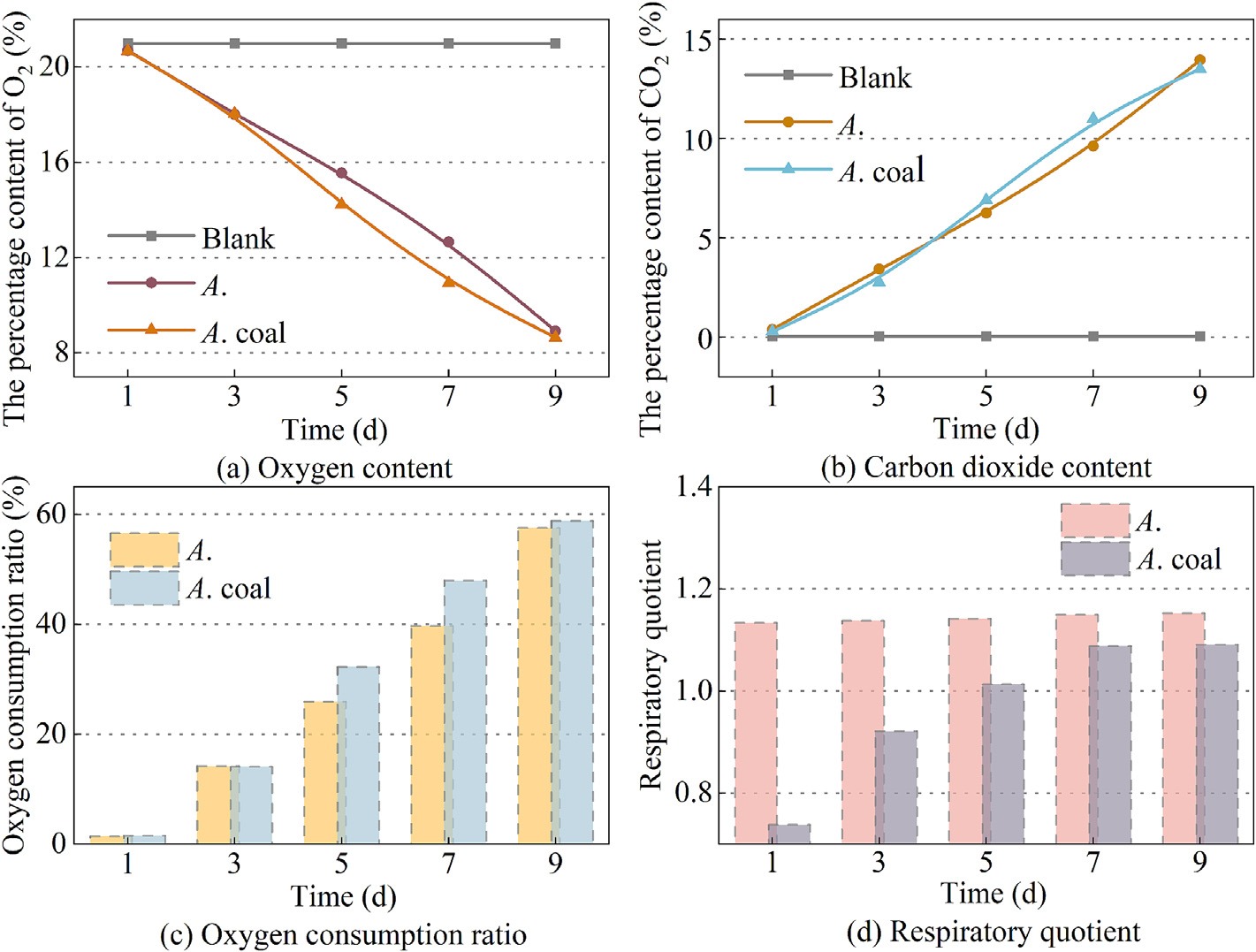

Early prevention and control of coal spontaneous combustion have emerged as a critical research area in coal mine safety. Due to their sustainability and environmental friendliness, microorganisms have gained attention. A filamentous fungus was collected in the coal mine and identified as Absidia spinosa. Results indicated that the mycelium effectively covered and repaired many coal pores. The oxygen consumption ratio of A. spinosa was higher in coal-containing environments than in coal-free conditions. The fungus significantly impacted aliphatic functional groups, disrupting bridging bonds and side chains connected to aromatic structures and reducing the relative content of CAO bonds. Additionally, A. spinosa increases the ignition temperature by 25.34 °C. The total heat release was decreased by approximately 32.58 %, and the activation energies were increased. The genome of Absidia spinosa revealed genes related to oxygen consumption, small molecule degradation, and secretion of metabolic products, such as those annotated under GO ID: 0140657, etc. The pathways involved in the degradation of small organic molecules (e.g., ko00626, etc.), carbon fixation, and nitrogen cycling, all linked to coal decomposition. Through oxygen consumption and the alteration of coal-active structures, A. spinosa effectively inhibits CSC, providing an experimental basis for exploring eco-friendly biological control methods in the goaf.
1. Introduction
Coal fire hazards represent one of the most critical threats to the coal industry. Among various types of mine fires, spontaneous combustion accounts for approximately 85 % to 90 % of the total incidents. Notably, goaf is one of the areas where coal spontaneous combustion (CSC) is most serious [1], accounting for more than 60 % of the total number of spontaneous combustion areas [2].
Physical and chemical techniques have been widely employed to contain the disaster, based on principles such as oxygen isolation [3], heat absorption and dissipation, and chemical inhibition. Physical means include the injection of inert gases [4], grouting [5], and balanced pressure [6]. Chemical approaches primarily involve spraying fire retardants [7], which aim to achieve early-stage prevention and control of CSC [8]. However, these physical prevention techniques exhibit certain limitations. For instance, although inert gas injection can achieve rapid cooling and wide diffusion, the gases are prone to leakage, significantly reducing effectiveness if timely replenishment is not ensured. Grouting offers advantages such as low cost, operational simplicity, and high safety. Nonetheless, the large volume of slurry may lead to pipeline blockage, and the coverage may be insufficient in some areas, compromising its efficacy. Pressure balance, which adjusts air pressure using existing ventilation systems, is simple and easy to operate. Yet, it imposes high demands on the operation of ventilation fans and the management of airflow networks, potentially introducing safety risks.
With the research into the mechanisms and reaction pathways of CSC [9], it has been established that the oxidation process is primarily driven by the interaction between active functional groups and oxygen. The higher the concentration of these active groups, the more intense their oxidative reactions [10]. Consequently, the critical factor for the prevention and control of CSC is the effective elimination or reduction of such active functional groups [11]. Studies have shown that the key elements influencing heat release during the CSC process are carbon (C), hydrogen (H), and oxygen (O). Among the various functional groups involved in coal oxidation, ACH2A and AC@O are identified as the primary active groups [12], wi
Loading authentic research manuscript (Pages 1–5)...
Xuanmeng Dong, Botao Qin, Fusheng Wang, Xiangming Hu, Liwen Guo, Tiesheng Han (2025). Characteristics and genomic mechanism of Absidia spinosa in inhibiting coal spontaneous combustion. International Journal of Mining Science and Technology. https://doi.org/10.1016/j.ijmst.2025.10.004
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the role of Absidia spinosa in inhibiting coal spontaneous combustion?
Absidia spinosa, a filamentous fungus, inhibits coal spontaneous combustion by covering and repairing coal pores, consuming oxygen, and altering coal's active functional groups, thereby reducing heat release and increasing ignition temperature.
How does Absidia spinosa affect coal's functional groups?
The fungus significantly impacts aliphatic functional groups, disrupting bridging bonds and side chains connected to aromatic structures, and reducing the relative content of CAO bonds, which are key to oxidation.
What are the genomic mechanisms behind Absidia spinosa's inhibitory effect?
Genomic analysis reveals genes related to oxygen consumption, small molecule degradation, and secretion of metabolic products, with pathways involved in degradation of small organic molecules, carbon fixation, and nitrogen cycling, all linked to coal decomposition.
What are the quantitative effects of Absidia spinosa on coal combustion parameters?
The fungus increases the ignition temperature by 25.34 °C, decreases total heat release by approximately 32.58%, and increases activation energies, indicating enhanced thermal stability.
Why is biological control using Absidia spinosa considered eco-friendly?
Biological control using microorganisms like Absidia spinosa is sustainable and environmentally friendly compared to traditional physical and chemical methods, offering a green alternative for preventing coal spontaneous combustion in goaf areas.
Related Technical Papers & Translations
Pull-out capacity and energy absorption of cable bolts under impact loading
This study investigates the performance of high-strength cable bolts under impact loading conditions representative of rock bursts in underground environments. Although widely used, the dynamic behaviour of these cable bolts has received limited experimental attention, and their effectiveness in seismically active zones remains a subject of ongoing debate. To address this gap, a reverse pull-out test machine integrated with a drop hammer rig was employed. Tests were conducted on 70-t SUMO bulbed and non-bulbed cable bolts with encapsulation lengths of 300 and 450 mm, subjected to an impact energy of 14.52 kJ. Results indicate that non-bulbed cables, despite showing lower initial peak loads (average 218 vs. 328 kN for bulbed cables at 300 mm encapsulation), demonstrated superior energy absorption (average 11.26 vs. 8.75 kJ) and displacement capacity (average 48.40 vs. 36.25 mm). Increasing the encapsulation length for bulbed cables led to a reduction in initial peak load but improved displacement and energy absorption. The dominant failure mechanism was debonding at the cable-grout interface, characterised by frictional sliding and cable rotation. These findings provide new insights into the energy dissipation mechanisms of cables and support the development of more resilient ground support systems for dynamically active conditions.
Effect of eutectic content on microstructure and mechanical properties of Al-Zn-Mg-Cu alloys
The 7xxx series aluminum alloys have emerged as a particularly promising class of lightweight structural materials. However, the inherent strength of these materials is primarily influenced by the content and type of alloying elements added during the manufacturing process, as well as casting defects. The present study investigated the effects of eutectics formed by solute atoms (Zn, Mg, and Cu), with equal mass ratios (Zn/Mg=2, Mg/Cu=3) but varying overall contents, on the liquid film thickness, crack propagation depth, and the mechanical properties of the Al-Zn-Mg-Cu alloy after heat treatment. The results from gravity casting indicate that the intergranular liquid film thickness increases with the increase of eutectic content. A thick intergranular liquid film in the casting can accommodate greater strain during grain contraction, thereby preventing liquid film rupture and subsequent hot tearing. Concurrently, during the solution treatment at 475 °C, the residual eutectic fraction in the Al-7Zn-3.5Mg-1.18Cu alloy diminishes from 9.1% at 10 h to 0.35% at 40 h. At 165 °C, the Al-6Zn-3.0Mg-1.0Cu alloy exhibits the optimal mechanical properties, with a peak aging tensile strength of 510 MPa and an elongation of 6.4%. The incorporation of lower concentrations of solute atoms (Zn, Mg, and Cu) serves to reduce the barrier to dislocation precipitation, thereby enhancing alloy plasticity. However, when the proportion of alloying elements exceeds the solubility limit of the α-Al matrix at specific heat treatment temperatures, coarse residual phases remain intergranular, thereby significantly impairing the mechanical properties of the alloy. This study provides a reference for the optimal addition level of the main strengthening elements in Al‑Zn‑Mg‑Cu alloys.
Achieving optimal strength-conductivity balance in cast Al-2.3Fe-Mg-Si alloys via Mg/Si ratio regulation
The Al-2.3Fe eutectic alloy is regarded as a promising substitute for Cu conductors in automotive motors owing to its excellent castability and low resistivity. However, its application is restricted by the mutually exclusive relationship between electrical conductivity and mechanical strength. The microstructure and mechanical properties of Al-2.3Fe alloy were modified through Mg/Si alloying combined with T6 heat treatment in this work, leading to the development of a high-performance cast Al-2.3Fe-Mg-Si alloy. In the Al-2.3Fe-0.40Mg-0.72Si (Mg/Si=0.56) alloy subjected to T6 treatment, an electrical conductivity of (52.5±0.6)% IACS is achieved, while the ultimate tensile strength is significantly enhanced to 309.5±5.6 MPa. The addition of Mg and Si brings about marked changes in the solidification process of the Al-2.3Fe alloy, resulting in considerable variations in both the morphology of the second phase and its phase constitution. The aging behavior of the alloy is governed by second phase and solid solubility. Through optimization of the Mg/Si ratio, the aging response can be effectively enhanced. At the ratio of Mg/Si=0.56, a balance is achieved between solid solubility and precipitation, while simultaneously minimizing the detrimental impact on electrical conductivity and reaching the best mechanical properties and electrical conductivity in peak-aged Al-2.3Fe-xMg-ySi alloy. This work providing valuable insights for developing advanced conductor materials.
