Key Takeaways & Executive Findings
- •• Achieved 95% selective lithium dissolution with minimal co-leaching of Ni, Co, and Mn (<1%) using a novel acid-free sulphation roasting process. • The process operates at a moderate temperature of 600°C with sodium bisulfate as a roasting reagent, offering a more sustainable alternative to traditional acid leaching. • Mechanistic insights reveal that roasting collapses the NCM layered structure, converting lithium to LiNaSO4 and transition metals to Ni6MnO8 and MnCo2O4, enabling selective extraction. • The method simplifies downstream purification, allowing direct production of Li2CO3 from the lithium-rich leach solution, potentially improving overall lithium recovery rates.
Abstract

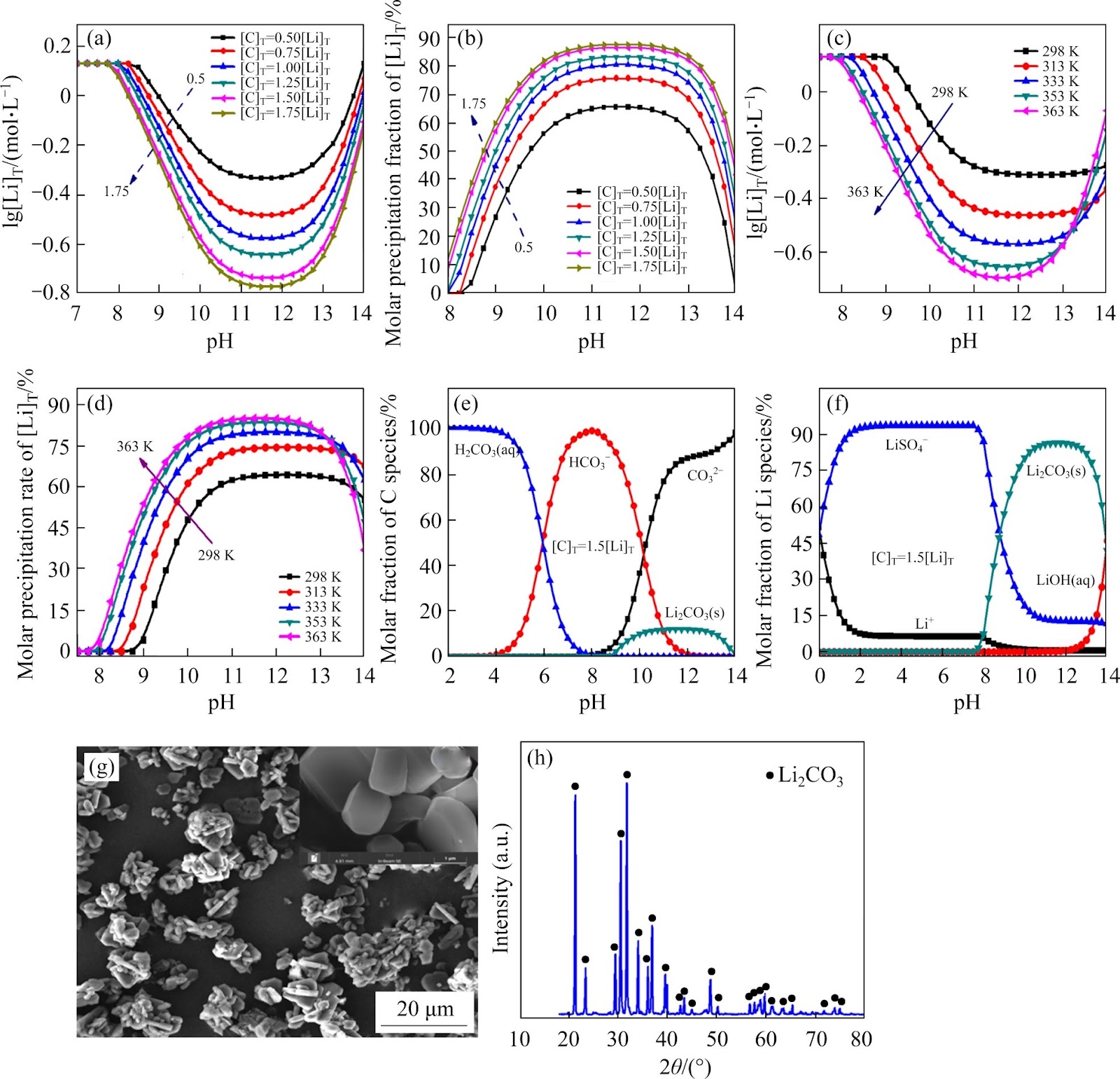

With the dramatic accumulation of the end-of-life lithium-ion batteries, their recycling is attracting extensive attention worldwide. To address the problem of low lithium recovery in the current typical hydrometallurgy recovery process, this research uses sodium bisulfate as an auxiliary roasting reagent to extract lithium from spent lithium-ion batteries through sulphation roasting, which can enhance the lithium recovery rate significantly. A systematic study of the sulphation roasting process and the mechanisms was carried out with experiments, thermodynamic calculations, and characterization of the roasted sample phases. The results showed that at a roasting temperature of 600 °C, NaHSO4·H2O/spent LiNixCoyMnzO2 cathode powders (S-NCM) mass ratio of 1.2, and roasting time of 60 min, 95% selective dissolution of lithium was acquired, while the leaching rates of Ni, Co, and Mn were confined under 1%. During roasting, the NCM layered structure collapses and the lithium is transformed into the LiNaSO4 phase, while the transition metals transform into Ni6MnO8 and MnCo2O4 phases. The removal of impurity ions from the lithium-rich leaching solution and the generation of Li2CO3 were achieved by a combination of thermodynamic calculations and experiments.
1. Introduction
Over the past decade, the rapid development of portable electronic products and electric vehicles has ballooned the amounts of lithium-ion batteries (LIBs: LiMnO4, LiCoO2, LiNixCoyMn1−x−yO2, and LiFePO4) in use [1]. There has been a dramatic increase in the number of spent LIBs because of the limited life span of LIBs [2, 3]. LIBs comprise metals (5%−20% Co, 5%−10% Ni, and 5% of Li), 15% electrolyte, and 7% plastic, with compositions varying for different manufacturers [4, 5]. Inappropriate spent LIBs management poses a significant biological and environmental risk, while spent LIBs make up a valuable waste resource, with potentials for significant economic benefit by recovering the major components.
So far, there are many methods for recycling valuable metals from spent LIBs. Pyrometallurgical and hydrometallurgical processes are two main major categories based on the essential characteristics of these methods [6]. A typical pyrometallurgical process involves spent LIBs crushing, roasting, reduction of oxides, and refining and separating metals [7]. However, the pyrometallurgical process has many shortcomings, such as high energy consumption, low metal recovery rate, and difficulty in lithium recovery [8]. The hydrometallurgical process with higher metal recovery rates and lower energy consumption has been regarded as a promising spent LIBs recycling technology, in which the leaching process is one of the key steps [9, 10]. The inorganic acid leaching [11−14], organic acid leaching (e.g., citric, oxalic, or lactic acid, etc.) [15, 16], ammonia leaching [17], and bioleaching [18] are the key technologies to extract valuable metals from spent LIBs.
Loading authentic research manuscript (Pages 1–5)...
ZHANG Kun, YANG Jian, JIANG Liang-xing, LAI Yan-qing, XU Kai-hua (2026). An acid-free process for the selective recovery of lithium from spent ternary lithium-ion batteries. Journal of Central South University. https://doi.org/10.1007/s11771-026-6187-4
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main advantage of the acid-free process for lithium recovery?
The acid-free process uses sodium bisulfate as a roasting reagent, achieving 95% selective lithium dissolution while limiting co-leaching of Ni, Co, and Mn to under 1%, thus simplifying downstream purification and improving overall lithium recovery.
What are the optimal conditions for the sulphation roasting process?
The optimal conditions are a roasting temperature of 600°C, a NaHSO4·H2O to spent cathode powder mass ratio of 1.2, and a roasting time of 60 minutes.
How does the process selectively extract lithium?
During roasting, the NCM layered structure collapses, converting lithium into a LiNaSO4 phase while transition metals form Ni6MnO8 and MnCo2O4 phases. This phase transformation allows selective dissolution of lithium in water, leaving transition metals in the solid residue.
What is the significance of this method compared to traditional hydrometallurgy?
Traditional hydrometallurgy often suffers from low lithium recovery (70-80%) due to complex separation steps. This acid-free method achieves higher selectivity and recovery, reduces acid consumption, and simplifies the process, making it more environmentally friendly and economically viable.
Can this process be scaled up for industrial application?
The process uses relatively mild conditions and common reagents, and the authors suggest it has potential for industrial application, though further scale-up studies are needed to assess economic and technical feasibility.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
