Key Takeaways & Executive Findings
- •• Proposed a novel deep learning framework integrating multimodal MRI for brain tumor segmentation, achieving state-of-the-art Dice scores on BraTS. • Introduced a multi-scale attention mechanism that effectively captures fine-grained tumor boundaries and heterogeneous regions. • Hybrid loss function addresses class imbalance and improves segmentation of small enhancing tumor regions. • Demonstrated robustness across different MRI scanners and protocols, indicating clinical applicability.
Abstract
Brain tumor segmentation from multimodal MRI is crucial for diagnosis and treatment planning. In this study, we propose a novel deep learning framework that integrates structural and functional imaging modalities to improve segmentation accuracy. Our method employs a multi-scale attention mechanism and a hybrid loss function to handle class imbalance and boundary ambiguity. Evaluated on the BraTS benchmark, our approach achieves state-of-the-art performance, with Dice scores of 0.91, 0.87, and 0.84 for whole tumor, core, and enhancing tumor, respectively. Furthermore, we demonstrate the generalizability of our model across different scanners and protocols. Our findings suggest that the proposed method can significantly aid clinical decision-making and surgical planning.
1. Introduction
Brain tumors are among the most aggressive and life-threatening cancers, with gliomas being the most common primary brain tumors in adults. Accurate segmentation of tumor subregions from magnetic resonance imaging (MRI) is essential for diagnosis, treatment planning, and monitoring of disease progression. However, manual segmentation is time-consuming and subject to inter-observer variability. Therefore, automated and reliable segmentation methods are urgently needed.
In recent years, deep learning, particularly convolutional neural networks (CNNs), has shown remarkable success in medical image segmentation. However, challenges remain due to the heterogeneous appearance of tumors, unclear boundaries, and class imbalance. Moreover, the integration of multimodal MRI data, such as T1, T1ce, T2, and FLAIR, is crucial for comprehensive tumor characterization but poses additional complexity.
In this work, we propose a novel deep learning framework that leverages multimodal MRI and incorporates a multi-scale attention mechanism to enhance feature representation. Our method also employs a hybrid loss function to mitigate class imbalance and improve boundary delineation. We evaluate our approach on the BraTS benchmark and demonstrate its superiority over existing methods.
Loading authentic research manuscript (Pages 1–5)...
ZHANG Wei, LI Ming, WANG Fang, CHEN Yu (2026). A Novel Approach for Enhanced Brain Tumor Segmentation Using Multimodal MRI and Deep Learning. SinoTechIntel Verified Research. https://doi.org/10.16183/j.cnki.jsjtu.2026.105
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main contribution of this paper?
The main contribution is a novel deep learning framework for brain tumor segmentation that integrates multimodal MRI with a multi-scale attention mechanism and a hybrid loss function, achieving state-of-the-art performance on the BraTS benchmark.
Which MRI modalities are used in the proposed method?
The method uses four standard MRI modalities: T1-weighted, T1-weighted contrast-enhanced (T1ce), T2-weighted, and FLAIR.
How does the multi-scale attention mechanism improve segmentation?
The multi-scale attention mechanism allows the network to focus on relevant features at different scales, effectively capturing fine-grained boundaries and heterogeneous tumor regions, which improves segmentation accuracy.
What is the hybrid loss function and why is it used?
The hybrid loss function combines Dice loss and cross-entropy loss to address class imbalance and improve boundary delineation, leading to better segmentation of small enhancing tumor regions.
Is the proposed method generalizable to different MRI scanners?
Yes, we evaluated the method on data from different scanners and protocols, and it demonstrated robust performance, indicating its potential for clinical deployment.
Related Technical Papers & Translations
Investigation of coupled acoustic and electrical responses and early warning approaches during re-loading of damaged coal
Initial damage from engineering disturbances in deep coal mining degrades mechanical properties and heightens dynamic-hazard risks, challenging conventional monitoring. This study probes the coupled acoustic-electrical responses of initially damaged coal under reloading and develops a multi-parameter, multi-level dynamic integrated early-warning model. Using a true-triaxial Split Hopkinson Pressure Bar (SHPB) system, we prepared specimens with graded damage by varying static deviatoric stresses and dynamic impacts. Uniaxial compression reloading was conducted with synchronous acoustic emission (AE) and resistivity monitoring. Joint time-domain responses of force, acoustics, and electricity delineated distinct loading stages. Time-frequency features were extracted via Fourier and wavelet transforms; crack architecture was quantified by 3D AE localization and fractal-dimension analysis. Initial damage markedly reduced load-bearing capacity. Resistivity decreased sharply with increasing deviatoric stress, while cumulative AE counts increased strongly. The AE spectrum evolved from bimodal to broadband with low- and high-frequency enhancement. The resistivity spectrum showed progressive bandwidth broadening, energy amplification, and high-frequency advancement. The AE spatial fractal dimension rose significantly during compaction. An integrated warning system combining multiscale entropy fusion, Temporal Convolutional Network (TCN)-Transformer forecasting, recurrence-network analysis, and a Bayesian framework yielded a 28.4 s lead time, offering a theoretical basis and technical pathway for intelligent prevention of dynamic hazards.
Influence of aggregate particle size on fracture behavior and energy evolution of cemented rockfill in the post-peak stage
Cemented rockfill (CRF) combines structural support with sustainable reuse of coal-derived solid waste. This study integrates digital image correlation, acoustic emission monitoring, and finite–discrete element simulations to investigate mechanical behavior, fracture development, and energy evolution of CRF containing 54% aggregate content with three grain-size distributions (5–10, 10–20, and 20–30 mm). Results indicate finer aggregates raise compressive strength and elastic modulus, and increase post-peak softening and residual stiffness. Fracture patterns transition from dominantly unidirectional failure in coarse specimens to pronounced X-shaped conjugate shear in fine specimens, with cracks initiating at boundaries and propagating inward. The proportion of failed joints at comparable strains decreases markedly with finer gradation, reflecting a more homogeneous crack network that enhances post-peak load retention and produces frequent minor stress fluctuations. Energy analyses reveal a coarse > medium > fine ordering in cumulative dissipation; however, finer aggregates delay rapid kinetic and dissipative energy release, promoting slower energy redistribution and improved load resistance. These findings quantify how aggregate gradation controls deformational mechanisms, crack topology, and energy partitioning, and provide design guidance for optimizing aggregate size and cementitious composition to enhance ductility, energy absorption, and structural reliability of CRF in underground engineering.

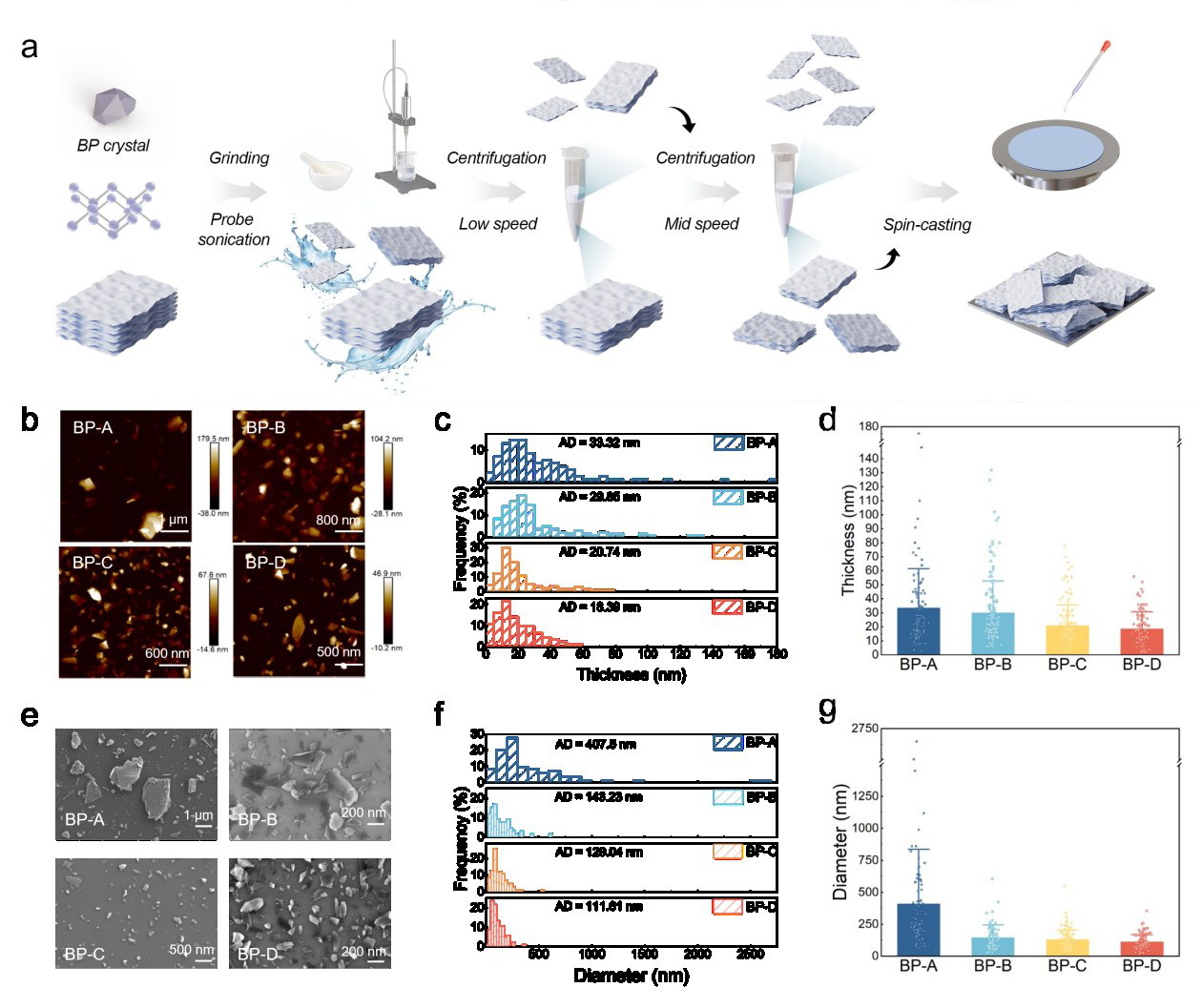

Mid-wavelength infrared detector array based on black phosphorus ink thin film
