Key Takeaways & Executive Findings
- •• Trace oxygen addition effectively stabilizes the β phase in Ti-Nb alloys, reducing elastic modulus from 91 GPa to 24 GPa while maintaining high compressive strength (1404 MPa) and increasing yield strength to 904 MPa. • The low-cost powder metallurgy process enables production of high-performance Ti-Nb alloys for orthopedic implants, offering a cost-effective alternative to expensive manufacturing routes. • Interstitial oxygen modulates thermoelastic martensitic transformation, enhancing shape memory recovery properties, which is beneficial for implant applications requiring recoverable deformation. • The study demonstrates a promising strategy to mitigate stress shielding in orthopedic implants by achieving low modulus comparable to bone (1-18 GPa) without significant strength compromise.
Abstract

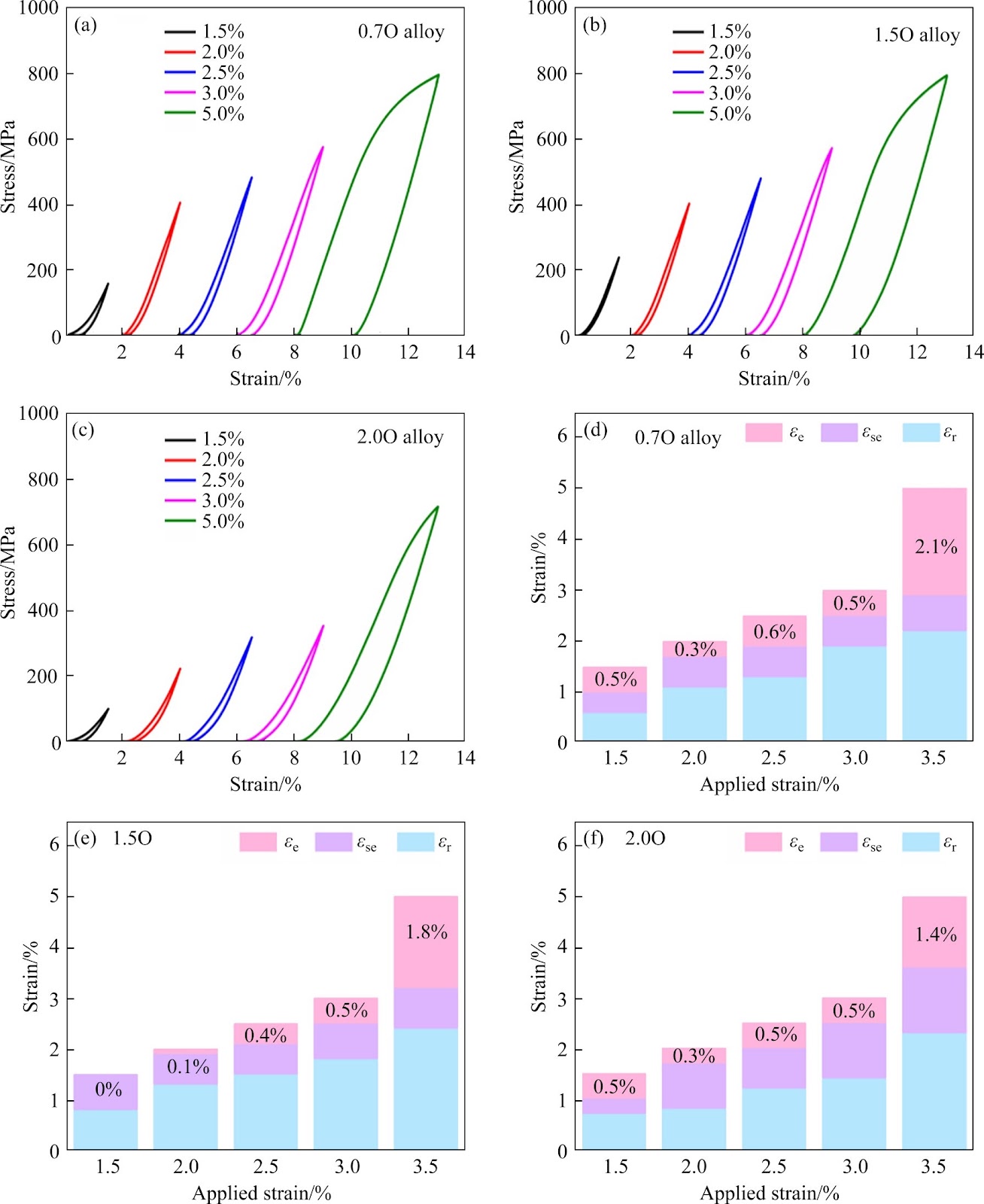

Hard tissue repair materials that balance high strength with low modulus are highly promising, representing a transformative focus in applied biomaterials research. In this study, Ti-Nb alloys with high performance are prepared by a low-cost process for orthopedic applications. Phase composition, modulus, compressive strength and recovery properties are effectively manipulated by tailoring trace amounts of interstitial oxygen. With increasing oxygen concentration in sintered Ti-Nb alloys, the β (body centered cubic) phase was stabilized due to the lattice distortion. The elastic modulus declined from 91 to 24 GPa. The compressive strength slightly decreased from 1595 to 1404 MPa and yield strength increased from 760 to 904 MPa. Additionally, the recovery properties were enhanced by the interstitial oxygen as a shape memory alloy. The utilization of trace oxygen serves to modulate the thermoelastic martensitic transformation in Ti-Nb alloys, thereby obtaining appropriate mechanical properties. A notable reduction in modulus is achieved while maintaining high strength, which facilitates the development of orthopedic implants capable of withstanding more complex forces.
1. Introduction
Many metallic materials have recently attracted significant attention for orthopedic applications due to their good biocompatibility and mechanical properties closer to bone [1, 2]. The common metals used in orthopedic biomaterials, especially in replacing shoulders, knees, hips and orodental structures, are 316L stainless steel, Ti and its alloys, Co-Cr, Zr-Ta-Ti [3] and Zr-Nb-Ti-Sn [4] alloys. As the elastic modulus of metals (>100 GPa) is typically much higher than that of bone (1−18 GPa), avoiding the stress shielding effects by modulus matching is an important consideration in the design of orthopedic materials [5, 6]. Porous structures are often introduced to reduce the elastic modulus [2]. Improved fixation can also be achieved by bone tissue growing into and through a porous metal matrix, bonding the implant to the bone host bone [7, 8]. However, not only does this significantly compromise the strength, but there is also the problem of uneven potential distribution due to differences in surface quality, leading to a reduction in corrosion resistance [5, 9−11].
The modulus can also be modulated by phase transformation. NiTi shape memory alloys have a large difference in modulus between martensite (<20 GPa) and austenite (>70 GPa). Different moduli can be obtained by modulating the phase composition. However, Ni ions are potentially harmful to the human body. TiNb alloys are one of most common beta titanium alloys and have excellent biocompatibility widely used in biomedical applications [12−14]. In particular, TiNb also possesses a thermoelastic martensitic transformation [15−18]. The α″ phase (orthorhombic titanium) with higher modulus, and the β phase (body-centered cubic titanium) with lower modulus, together determine the alloy modulus.
Recent studies have shown that the transformation behavior and mechanical properties of TiNb can be effectively adjusted by modulating the interstitial elements [19, 20]. Oxygen has a significant effect on the microstructures and properties of Ti alloys. Lattice expansion due to the oxygen interstitial solid-solution inhibits martensitic transformation and dislocation motion [21]. For Ti-Nb alloys, introducing approximately 1 at% oxygen causes the martensitic transformation temperature (MTT) to decrease by 160 K. This mechanism has been studied extensively. HAMMOND [22] attributed the decrease in the martensitic transformation temperature to the inhibited contraction along the a-axis of the α″ phase (orthorhombic titanium). TAHARA et al [23, 24] and KIM et al [25] found that oxygen stabilizes both the β and α″ phases. Localized nanodomains induced by oxygen atoms in the β phase (body-centered cubic titanium) inhibit the β-to-α″ transformation. The strain-field induced by oxygen promotes the stabilization of the α″ phase. It was reported that oxygen retained the low stability β phase, while reducing the precipitation of α″ and ω (monoclinic structure) martensite [26, 27]. The elastic modulus of Ti-Nb-Ta-Zr-xO decreased as the oxygen content increased. Interstitial oxygen increases the c/a ratio of the β phase, limiting dislocation motion and leadi
Loading authentic research manuscript (Pages 1–5)...
LOU Jia, TANG Xin-dong, DU Chang-hai, LI Dong-yang, LI Yi-min (2026). A low-cost TiNb alloy with high strength for orthopedic implants with low modulus tuned by oxygen concentration. Journal of Central South University. https://doi.org/10.1007/s11771-026-6176-7
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main advantage of the TiNb alloy developed in this study?
The TiNb alloy achieves a low elastic modulus (24 GPa) comparable to bone while maintaining high compressive strength (1404 MPa) and increased yield strength (904 MPa), which helps reduce stress shielding in orthopedic implants.
How does oxygen concentration affect the properties of TiNb alloys?
Increasing oxygen concentration stabilizes the β phase, reduces the elastic modulus from 91 to 24 GPa, slightly decreases compressive strength, increases yield strength, and enhances shape memory recovery properties by modulating the thermoelastic martensitic transformation.
What is the significance of using a low-cost process for TiNb alloy production?
The low-cost powder metallurgy process makes the production of high-performance TiNb alloys more economical, potentially increasing their accessibility for orthopedic implant applications.
Why is low modulus important for orthopedic implants?
Low modulus helps avoid stress shielding, a phenomenon where the implant bears most of the load, leading to bone resorption and implant loosening. Matching the modulus of bone (1-18 GPa) promotes better load sharing and implant longevity.
What are the potential applications of this TiNb alloy?
The alloy is intended for orthopedic implants such as bone replacement and fixation devices, where a combination of high strength, low modulus, and good biocompatibility is required.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
